Product Summary

The BZX84-C4V7,235 is a Low-power voltage regulator diode in small SOT23 plastic SMD packages.

Parametrics

BZX84-C4V7,235 absolute maximum ratings: (1)IF continuous forward current: 200 mA; (2)Ptot total power dissipation Tamb = 25℃: 250 mW; (3)PZSM non-repetitive peak reverse power dissipation tp = 100 μs; square wave; Tj = 25℃ prior to surge: 40 W; (4)Tstg storage temperature: -65℃ to +150℃; (5)Tj junction temperature: -65℃ to +150℃.

Features

BZX84-C4V7,235 features: (1)Total power dissipation: max. 250 mW; (2)Three tolerance series: ±1%, ±2% and approx. ±5%; (3)Working voltage range: nom. 2.4 to 75 V (E24 range); (4)Non-repetitive peak reverse power dissipation: max. 40 W.

Diagrams

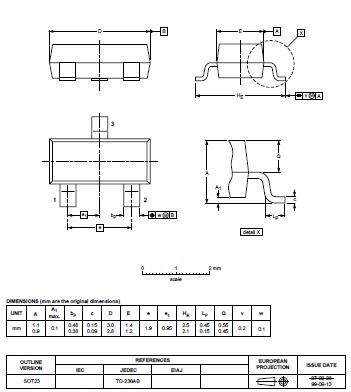

BZX84-C4V7,235 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BZX84-C4V7,235
BZX84-C4V7,235
NXP Semiconductors
Zener Diodes DIODE ZENER 5 PCT
Data Sheet
0-1: $0.09
1-25: $0.08
25-100: $0.06
100-250: $0.03
