Product Summary

The DF06M is a bridge rectifier.

Parametrics

DF06M absolute maximum ratings: (1)VRRM Maximum Repetitive Reverse Voltage: 600 V; (2)VRMS Maximum RMS Bridge Input Voltage: 420 V; (3)VR DC Reverse Voltage (Rated VR): 600 V; (4)IF(AV) Average Rectified Forward Current, @ TA = 40℃: 1.5 A; (5)IFSM Non-repetitive Peak Forward Surge Current 8.3 ms Single Half-Sine-Wave: 50 A; (6)Tstg Storage Temperature Range: -55℃ to +150℃; (7)TJ Operating Junction Temperature: -55℃ to +150℃.

Features

DF06M features: (1)Surge overload rating: 50 amperes peak; (2)Glass passivated junction; (3)Low leakage; (4)UL certified, UL #E111753.

Diagrams

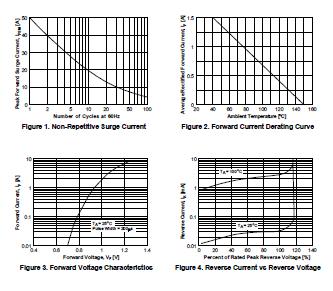

DF06M waveform

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DF06M
DF06M
Fairchild Semiconductor
Bridge Rectifiers 1.5A Bridge
Data Sheet
0-1: $0.22
1-25: $0.18
25-100: $0.16
100-250: $0.14
DF06M/45
DF06M/45
Vishay Semiconductors
Bridge Rectifiers 1.0 Amp 600 Volt
Data Sheet
Negotiable
DF06M_Q
DF06M_Q
Fairchild Semiconductor
Bridge Rectifiers 1.5A Bridge
Data Sheet
Negotiable
DF06MA
DF06MA
Other

Data Sheet
Negotiable
DF06MA-E3/45
DF06MA-E3/45
Vishay Semiconductors
Bridge Rectifiers 1.0 Amp 600 Volt
Data Sheet
0-1: $0.23
1-10: $0.20
10-100: $0.18
100-250: $0.16
DF06M-E3/45
DF06M-E3/45
Vishay Semiconductors
Bridge Rectifiers 1.0 Amp 600 Volt
Data Sheet
0-1: $0.25
1-10: $0.22
10-100: $0.17
100-250: $0.14
