Product Summary

The EL7202CSZ-T7 is a High Speed, Dual Channel Power MOSFET Driver. The EL7202CSZ-T7 is matched dual-drivers that improves the operation of the industry standard DS0026 clock drivers.

Parametrics

EL7202CSZ-T7 absolute maximum ratings: (1)Supply (V+ to Gnd): 16.5V; (2)Input Pins: -0.3V to +0.3V above V+; (3)Combined Peak Output Current: 4A; (4)Storage Temperature Range: -65℃ to +150℃; (5)Ambient Operating Temperature: -40℃ to +85℃; (6)Operating Junction Temperature: 125℃; (7)Power Dissipation SOIC: 570mW.

Features

EL7202CSZ-T7 features: (1)Industry standard driver replacement; (2)Improved response times; (3)Matched rise and fall times; (4)Reduced clock skew; (5)Low output impedance; (6)Low input capacitance; (7)High noise immunity; (8)Improved clocking rate; (9)Low supply current; (10)Wide operating voltage range; (11)Pb-Free available (RoHS compliant).

Diagrams

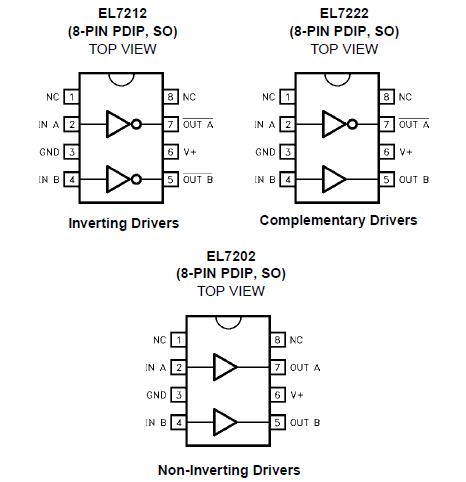

EL7202CSZ-T7 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EL7202CSZ-T7
EL7202CSZ-T7

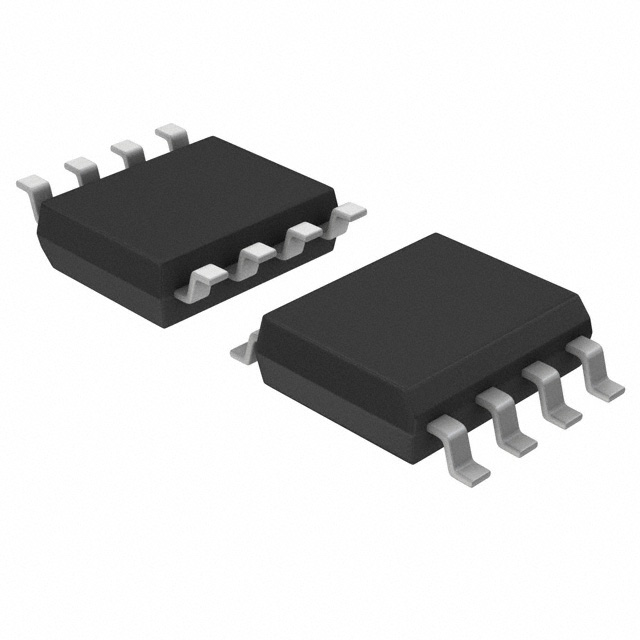

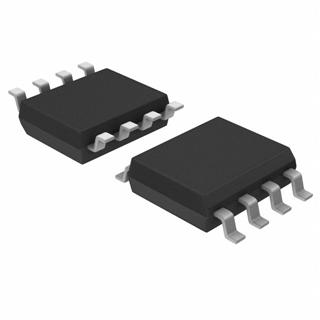

IC MOSFET DRIVER DUAL HS 8-SOIC
Data Sheet
0-1: $1.83
1-25: $1.19
25-100: $1.01
