Product Summary
The XC95144XL-10TQG144C is a 3.3V CPLD. It is designed as one kind of 3.3V CPLD targeted for high-performance, low-voltage applications in leading-edge communications and computing systems. The XC95144XL-10TQG144C is comprised of eight 54V18 Function Blocks, providing 3,200 usable gates with propagation delays of 5 ns.
Parametrics
XC95144XL-10TQG144C absolute maximum ratings: (1)supply voltage relative to GND: -0.5 to 4.0 V;(2)input voltage relative to GND: -0.5 to 5.5 V;(3)voltage applied to 3-state output: -0.5 to 5.5 V;(4)storage temperature (ambient): -65 to +150℃; (5)maximum soldering temperature (10s @ 1/16 in.=1.5 mm): +220℃; (6)junction temperature: +150℃.
Features
XC95144XL-10TQG144C features: (1)5 ns pin-to-pin logic delays;(2)system frequency up to 178 MHz;(3)144 macrocells with 3,200 usable gates;(4)available in small footprint packages;(5)optimized for high-performance 3.3V systems;(6)fast concurrent programming;(7)slew rate control on individual outputs;(8)enhanced data security features;(9)excellent quality and reliability;(10)pin-compatible with 5V-core XC95144 device in the 100-pin TQFP package.

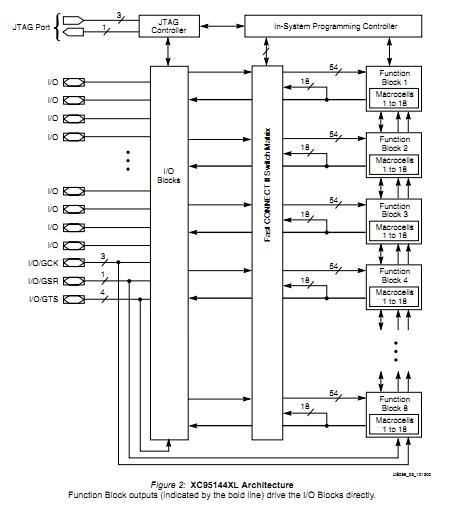

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

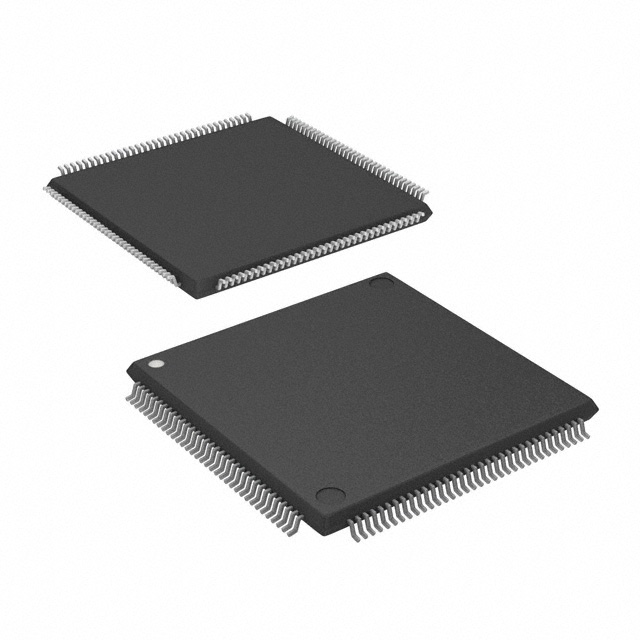

 XC95144XL-10TQG144C |
|
IC CPLD 3.2K 144MCELL 144-TQFP |
Data Sheet |
|
|
||||||||||||||||
