Product Summary

The BAT54S,215 is a Planar silicon Schottky barrier diode encapsulated in a SOD-323 very small plastic SMD package.

Parametrics

BAT54S,215 absolute maximum ratings: (1)VR continuous reverse voltage: 30 V; (2)IF continuous forward current: 200 mA; (3)IFRM repetitive peak forward current tp ≤ 1 s; δ ≤ 0.5: 300 mA; (4)IFSM non-repetitive peak forward current tp < 10 ms: 600 mA; (5)Tstg storage temperature: -65℃ to +150℃; (6)Tj junction temperature: - 125℃; (7)Ptot total power dissipation Tamb ≤ 25℃: 230 mW.

Features

BAT54S,215 features: (1)Low forward voltage; (2)Guard ring protected; (3)Small plastic SMD package.

Diagrams

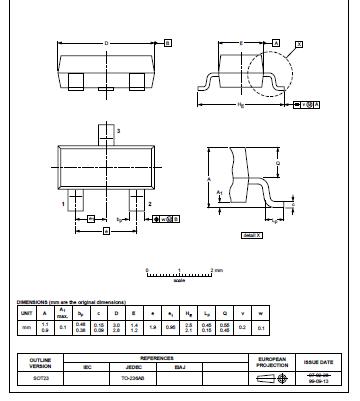

BAT54S,215 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BAT54S,215
BAT54S,215
NXP Semiconductors
Schottky (Diodes & Rectifiers) SCHOTTKY 30V DUAL
Data Sheet
0-1: $0.03
1-25: $0.02
25-100: $0.02
100-250: $0.02
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BAT54
BAT54
Fairchild Semiconductor
Schottky (Diodes & Rectifiers) SOT-23 30V 200mA
Data Sheet
0-1: $0.10
1-25: $0.09
25-100: $0.06
100-250: $0.03
BAT54 /T3
BAT54 /T3
NXP Semiconductors
Schottky (Diodes & Rectifiers) DIODE SCHTKY TAPE-11
Data Sheet
Negotiable
BAT54(Z)
BAT54(Z)
Other

Data Sheet
Negotiable
BAT54,215
BAT54,215
NXP Semiconductors
Schottky (Diodes & Rectifiers) SCHOTTKY 30V 200MA
Data Sheet
0-1: $0.03
1-25: $0.01
25-100: $0.01
100-250: $0.01
BAT54,235
BAT54,235
NXP Semiconductors
Schottky (Diodes & Rectifiers) DIODE SCHTKY TAPE-11
Data Sheet
0-1: $0.03
1-25: $0.01
25-100: $0.01
100-250: $0.01
BAT54_D87Z
BAT54_D87Z
Fairchild Semiconductor
Schottky (Diodes & Rectifiers) SOT-23 30V 200mA
Data Sheet
0-1: $0.14
1-25: $0.10
25-100: $0.06
100-250: $0.04
