Product Summary

The 0451010.MRL is a Very Fast-Acting fuse. It is a very small, Wire-in-Air (WIA) square shape surface mount fuse. The 0451010.MRL is very suitable for the secondary side circuit over-current protection applications and is designed for PCB using surface mount technology.

Parametrics

0451010.MRL absolute maximum ratings: (1)Current Rating: 10 Amps; (2)Voltage Rating: 125 Volts; (3)Operating Temperature Range: - 55℃ to + 125℃; (4)Resistance: 0.0056 Ohms.

Features

0451010.MRL features: (1)Very fast acting; (2)Small size; (3)Wide range of current rating available (62mA to 15A); (4)Wide operating temperature range; (5)Low temperature de-rating; (6)RoHS compliant; (7)Halogen Free.

Diagrams

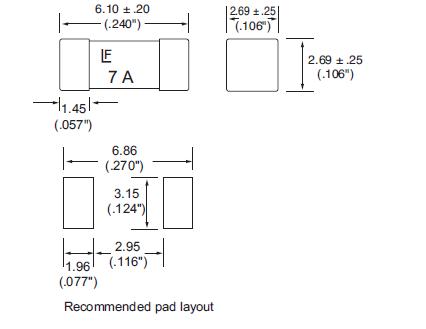

0451010.MRL package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
0451010.MRL
0451010.MRL
Littelfuse
Fuses 125V 10A
Data Sheet
0-1: $0.91
1-10: $0.87
10-100: $0.76
100-250: $0.70
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
0451.062MR
0451.062MR
Littelfuse
Fuses 125V.062A
Data Sheet
0-1: $0.96
1-10: $0.91
10-100: $0.86
100-250: $0.81
0451.062MRL
0451.062MRL
Littelfuse
Fuses 125V.062A
Data Sheet
0-1: $1.32
1-10: $1.12
10-100: $0.95
100-250: $0.90
0451.062NR
0451.062NR
Littelfuse
Fuses 125V .062A W/AG Caps
Data Sheet
0-3460: $0.70
3460-5000: $0.67
5000-10000: $0.65
0451.062NRL
0451.062NRL
Littelfuse
Fuses 125V .062A V/FA NANO2 W/Au
Data Sheet
0-3790: $0.62
3790-5000: $0.59
0451.080MR
0451.080MR
Littelfuse
Fuses 125V .8A W/AG Caps
Data Sheet
0-640: $0.76
640-1000: $0.72
1000-2000: $0.70
2000-5000: $0.67
0451.080MRL
0451.080MRL
Littelfuse
Fuses 125V.08A
Data Sheet
0-1: $1.32
1-10: $1.12
10-100: $0.82
100-250: $0.77
