Product Summary
The RC1206JR-07220RL is a Thick Film Resistor.
Parametrics
RC1206JR-07220RL absolute maximum ratings: (1)Operating Temperature Range: –55℃ to +155℃; (2)Maximum Working Voltage: 200 V; (3)Maximum Overload Voltage: 400 V; (4)Dielectric Withstanding Voltage: 500 V; (5)Resistance Range 5% (E24): 1 Ω to 22 MΩ; (6)Resistance Range 1% (E24/E96): 1 Ω to 10 MΩ; (7)Resistance Range Zero Ohm Jumper: < 0.05 Ω; (8)Temperature Coefficient 1 Ω ≤ R ≤ 10 Ω: ±200 ppm/℃; (9)Temperature Coefficient 10 MΩ < R ≤ 22 MΩ: ±200 ppm/℃; (10)Temperature Coefficient 10 Ω < R ≤ 10 MΩ: ±100 ppm/℃; (11)Jumper Criteria Rated Current: 2 A; (12)Jumper Criteria Maximum Current: 10 A.
Features
RC1206JR-07220RL features: (1)Halogen Free Epoxy; (2)RoHS compliant; (3)Products with lead free terminations meet RoHS requirements; (4)Pb-glass contained in electrodes, resistor element and glass are exempted by RoHS; (5)Reducing environmentally hazardous wastes; (6)High component and equipment reliability; (7)Saving of PCB space; (8)None forbidden-materials used in products/production.

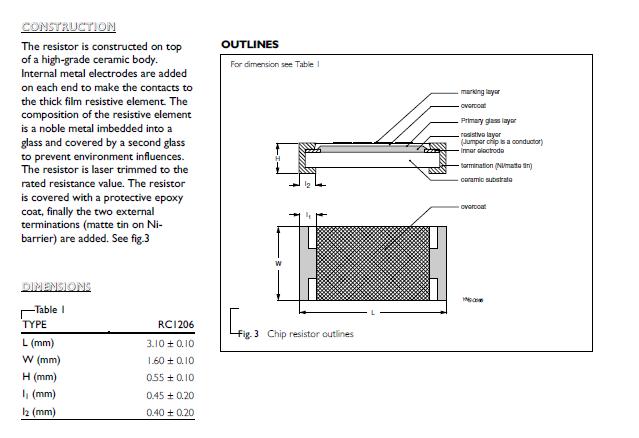

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RC1206JR-07220RL |
Yageo |
Thick Film Resistors - SMD 220 OHM 5% |
Data Sheet |
|
|
||||||||||||||
