Product Summary
The CY7C63723C-SXC is an 8-bit RISC one-time-programmable (OTP) microcontroller. The instruction set has been optimized specifically for USB and PS/2 operations, although the microcontrollers can be used for a variety of other embedded applications. The CY7C63723C-SXC features up to 16 GPIO pins to support USB, PS/2 and other applications. The I/O pins are grouped into two ports (Port 0 to 1) where each pin can be individually configured as inputs with internal pull-ups, open drain outputs, or traditional CMOS outputs with programmable drive strength of up to 50 mA output drive.
Parametrics
CY7C63723C-SXC absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –0℃ to +70℃; (3)Supply Voltage on VCC Relative to VSS: –0.5V to +7.0V; (4)DC Input Voltage: –0.5V to +VCC+0.5V; (5)DC Voltage Applied to Outputs in High Z State: –0.5V to + VCC+0.5V; (6)Power Dissipation: 300 mW; (7)Static Discharge Voltage: >2000V; (8)Latch-up Current: >200 mA.
Features
CY7C63723C-SXC features: (1)Optional 6-MHz internal oscillator mode; (2)Watchdog Reset (WDR); (3)Low-voltage Reset at 3.75V; (4)Internal brown-out reset for suspend mode; (5)Improved output drivers to reduce EMI; (6)Operating voltage from 4.0V to 5.5VDC; (7)Operating temperature from 0℃ to 70℃; (8)CY7C63743C available in 24-pin SOIC, 24-pin PDIP, 24-pin QSOP; (9)Industry standard programmer support.

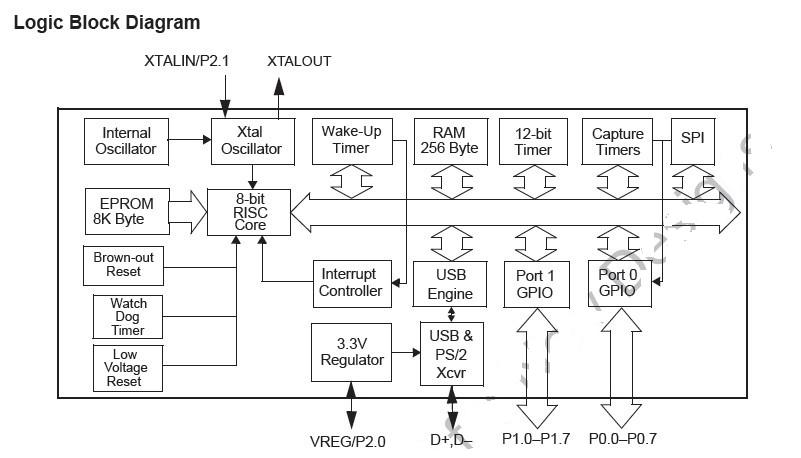

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CY7C63723C-SXC |
Cypress Semiconductor |
I/O Controller Interface IC USB/PS/2 Combo LoSpd Peripheral Controlr |
Data Sheet |
|
|
||||||||||||
|
CY7C63723C-SXCT |
Cypress Semiconductor |
I/O Controller Interface IC USB/PS/2 Combo LoSpd Peripheral Controlr |
Data Sheet |
|
|
||||||||||||
