Product Summary

The 17-21/BHC-AP1Q2/3T is a 0805 Package Chip LED. It is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.

Parametrics

17-21/BHC-AP1Q2/3T absolute maximum ratings: (1)Reverse Voltage VR: 5 V; (2)Forward Current IF: 25 mA; (3)Peak Forward Current (Duty 1/10 @1KHz) IFP: 100 mA; (4)Power Dissipation Pd: 95 mW; (5)Electrostatic Discharge(HBM) ESD: 150 V; (6)Operating Temperature Topr: -40℃ to +85℃; (7)Storage Temperature Tstg: -40℃ to +90℃.

Features

17-21/BHC-AP1Q2/3T features: (1)Package in 8mm tape on 7" diameter reel; (2)Compatible with automatic placement equipment; (3)Compatible with infrared and vapor phase reflow solder process; (4)Mono-color type; (5)Pb-free; (6)The product itself will remain with in RoHS complaint version.

Diagrams

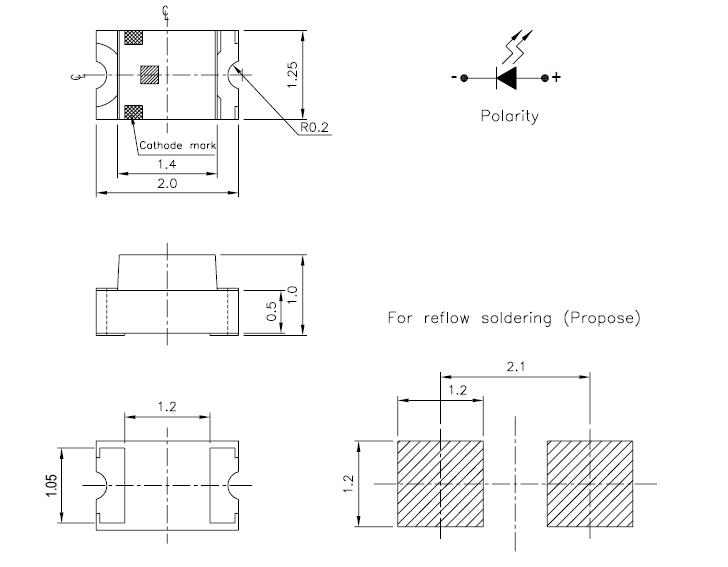

17-21/BHC-AP1Q2/3T package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
17-21/BHC-AP1Q2/3T
17-21/BHC-AP1Q2/3T
Everlight
Standard LED - SMD SMD LED
Data Sheet
0-1: $0.13
1-50: $0.12
50-100: $0.10
100-500: $0.07
