Product Summary
The PI6CV304LEX is a low-skew, low-noise, high-speed clock buffer and is ideal for computing, networking, and communication applications. The PI6CV304LEX is used for networking and communications applications requiring 80 MHz for 10/100 Mbps ethernet and 125 MHz for gigabit networking clocks.
Parametrics
PI6CV304LEX absolute maximum ratings: (1)supply voltage (VDD): - 0.0 V to + 5.0 V; (2)input voltage: -0.5 V to VDD + 0.5 V; (3)industrial operating temperature: -40 to + 85℃; (4)storage temperature: -65 to + 150℃; (5)junction temperature: 150℃; (6)input ESD MIL-883, method 3015, human body model: 2 KV.
Features
PI6CV304LEX features: (1)160 MHz operation; (2)low noise, low skew: 150 ps max; (3)fast rise/fall time: 1.0 ns typ.; (4)fast propagation delay: 2.0 ns typ.; (5)5V I/O tolerant input; (6)industrial temperature (-40 to 85℃); (7)3.3 V power supply.

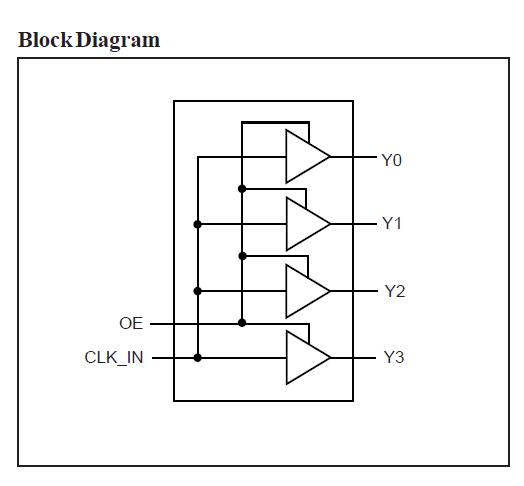

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PI6CV304LEX |
Pericom |
Clock Buffer 1:4 PCI (X) Clock Buffer |
Data Sheet |
|
|
||||||||||||
