Product Summary
The AM26LS32ACDR is a quadruple differential line receiver for balanced and unbalanced digital data transmission. The enable function is common to all four receivers and offers a choice of active-high or active-low input. The 3-state outputs permit connection directly to a bus-organized system. Fail-safe design ensures that, if the inputs are open, the outputs always are high. The input impedance has been increased, resulting in less loading of the bus line. The additional stage has increased propagation delay; however, this does not affect interchangeability in most applications. The AM26LS32ACDR is characterized for operation from 0 to 70℃.
Parametrics
AM26LS32ACDR absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: Any differential input: ±25 V; (3)Other inputs: 7 V; (4)Differential input voltage, VID: ±25 V; (5)Package thermal impedance, θJA (see Note 3): D package : 73℃/W; N package: 67℃/W; NS package: 64℃/W; (6)Case temperature for 60 seconds, TC: FK package: 260℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D or N package: 260℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: J package: 300℃; (9)Storage temperature range, Tstg: –65℃ to 150℃.
Features
AM26LS32ACDR features: (1)Meet or Exceed the Requirements of ANSI TIA/EIA-422-B, TIA/EIA-423-B, and ITU Recommendations V.10 and V.11; (2) ±7-V Common-Mode Range With ±200-mV Sensitivity; (3) ±15-V Common-Mode Range With ±500-mV Sensitivity; (4)Input Hysteresis: 50 mV Typical; (5)Operate From a Single 5-V Supply; (6)Low-Power Schottky Circuitry; (7)3-State Outputs; (8)Complementary Output-Enable Inputs; (9)Input Impedance: 12 kΩ Min; (10)Designed to Be Interchangeable With Advanced Micro Device.

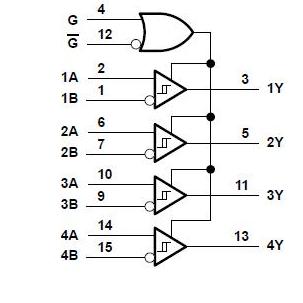

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AM26LS32ACDR |
Texas Instruments |
Buffers & Line Drivers Quad Diff Line |
Data Sheet |
|
|
||||||||||||
|
AM26LS32ACDRE4 |
Texas Instruments |
Buffers & Line Drivers Quad Diff Line |
Data Sheet |
|
|
||||||||||||
 |
AM26LS32ACDRG4 |
Texas Instruments |
Bus Receivers Quad Diff Line Rcvr |
Data Sheet |
|
|
||||||||||||
