Product Summary

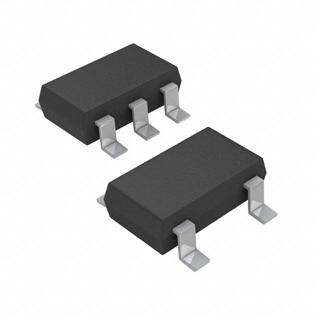

The LTC1844ES5-3.3#TRPBF is a Low Noise, VLDO Linear Regulator. It is designed for low power/portable applications. The LTC1844ES5-3.3#TRPBF can operate from input voltages as low as 1.6V.
Parametrics
LTC1844ES5-3.3#TRPBF absolute maximum ratings: (1)Supply Voltage (IN): –7V to 7V; (2)Input Voltage SHDN, BYP, ADJ: – 0.3V to 7V; (3)Output Voltage OUT: – 0.3V to 7V; (4)OUT to IN: –7V to 7V; (5)Operating Junction Temperature Range: –40℃ to 125℃; (6)Storage Temperature Range: –65℃ to 150℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LTC1844ES5-3.3#TRPBF features: (1)Very Low Dropout: 30mV at 50mA; (2)Wide Input Voltage Range: 1.6V to 6.5V; (3)Low 35μA Supply Current, Even in Dropout; (4)Low Noise: 60μVRMS (10Hz to 100kHz); (5)±1.75% Voltage Accuracy Over Temperature, Voltage and Current Ranges; (6)Fast Transient Response; (7)10nA Supply Current in Shutdown; (8)Fixed Output Voltages: 1.5V, 1.8V, 2.5V, 2.8V, 3.3V; (9)Adjustable Output Voltage: 1.25V to 6V; (10)Output Current Limit; (11)Reverse-Battery and Reverse-Current Protection; (12)No Protection Diodes Needed; (13)Stable with 1μF Output Capacitor; (14)Stable with Ceramic Capacitors; (15)Short-Circuit and Thermal Overload Protection; (16)Low Profile (1mm) SOT-23 Package.

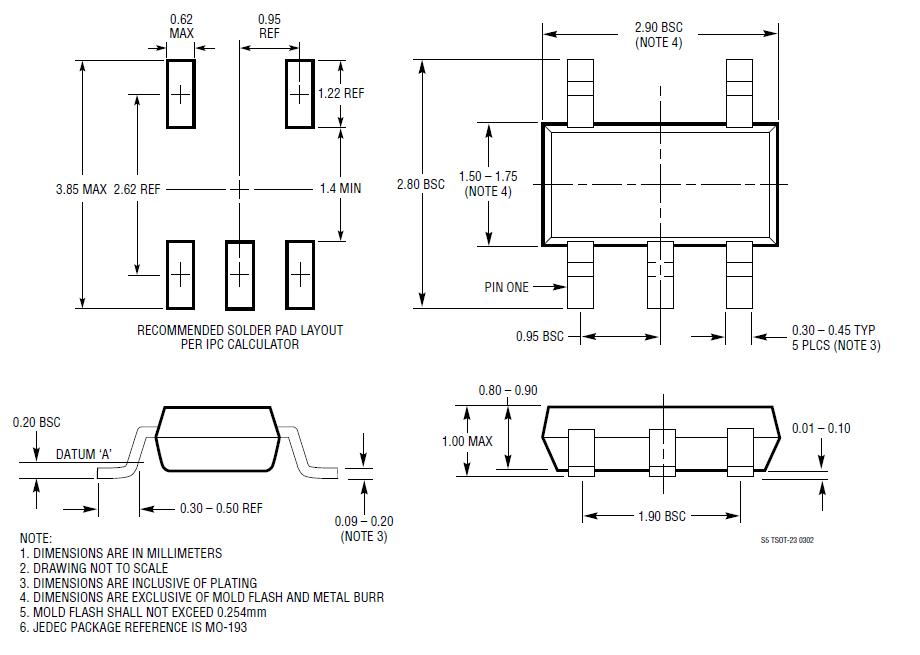

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() LTC1844ES5-3.3#TRPBF |
![]() |
![]() IC REG LDO 3.3V .15A TSOT23-5 |
![]() Data Sheet |
![]()
|
|
||||||||||
