E-L6219DS013TR

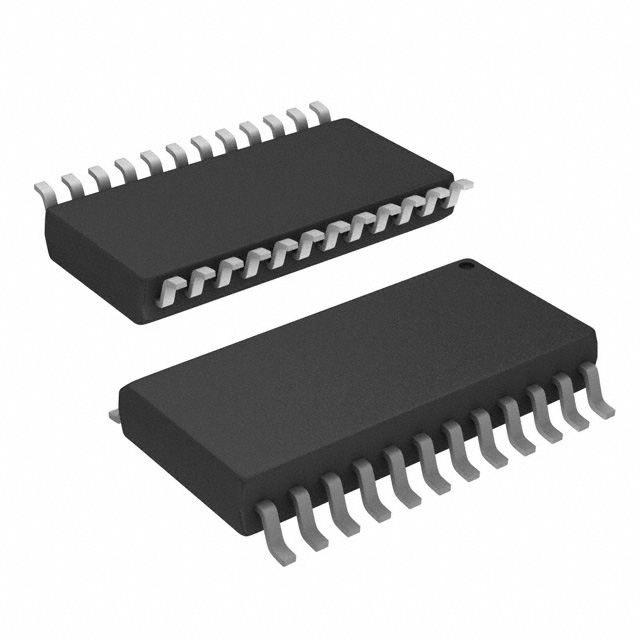

Stepper motor driver, E-L6219DS013TR, SOIC-24, 50 V, ±1 A

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~2.00

PartNumber:: E-L6219DS013TR

Brand:: STMicroelectronics - ST | Pack: SOIC | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. JessieGui's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-09

From Other Seller

Part Number:E-L6219DS013TR
US $1.50 - 2.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

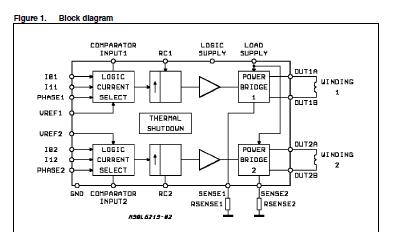

The E-L6219DS013TR is a Stepper motor driver. The E-L6219DS013TR is a bipolar monolithic integrated circuits intended to control and drive both winding of a bipolar stepper motor or bidirectionally control two DC motors.

Parametrics

E-L6219DS013TR absolute maximum ratings: (1)Vs Supply voltage: 50 V; (2)IO Output current (peak): ±1 A; (3)IO Output current (continuous): ±0.75 A; (4)Vss Logic supply voltage: 7 V; (5)Vin Logic input voltage range: -0.3 to +7 V; (6)Vsense Sense output voltage: 1.5 V; (7)Tj Junction temperature: +150℃; (8)Top Operating temperature range: -20 to +85℃; (9)Tstg Storage temperature range: -55 to +150℃.

Features

E-L6219DS013TR features: (1)Able to drive both windings of bipolar stepper motor; (2)Output current up to 750 mA each winding; (3)Wide voltage range: 10 V to 46 V; (4)Half-step, full-step and microstepping mode; (5)Built-in protection diodes; (6)Internal PWM current control; (7)Low output saturation voltage; (8)Designed for unstabilized motor supply voltage; (9)Internal thermal shutdown.
