Product Summary

The LTC1669IMS8#TRPBF is a 10-bit voltage output DAC with true buffered rail-to-rail output voltage capability. It operates from a single supply with a range of 2.7V to 5.5V.

Parametrics

LTC1669IMS8#TRPBF absolute maximum ratings: (1)VCC to GND: – 0.3V to 7.5V; (2)SDA, SCL: –0.3V to 7.5V; (3)AD0, AD1, AD2 (MSOP Only): –0.3V to (VCC + 0.3V); (4)VOUT: –0.3V to (VCC + 0.3V); (5)Operating Temperature Range: –40℃ to 85℃; (6)Storage Temperature Range: –65℃ to 150℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC1669IMS8#TRPBF features: (1)Micropower 10-Bit DAC in SOT-23; (2)Low Operating Current: 60μA; (3)Ultralow Power Shutdown Mode: 12μA; (4)2-Wire Serial Interface Compatible with I2CTM; (5)Selectable Internal Reference or Ratiometric to VCC; (6)Maximum DNL Error: 0.75LSB; (7)8 User Selectable Addresses (MSOP Package); (8)Single 2.7V to 5.5V Operation; (9)Buffered True Rail-to-Rail Voltage Output; (10)Power-On Reset; (11)1.5V VIL and 2.1V VIH for SDA and SCL; (12)Small 5-Lead TSOT-23 and 8-Lead MSOP Packages.

Diagrams

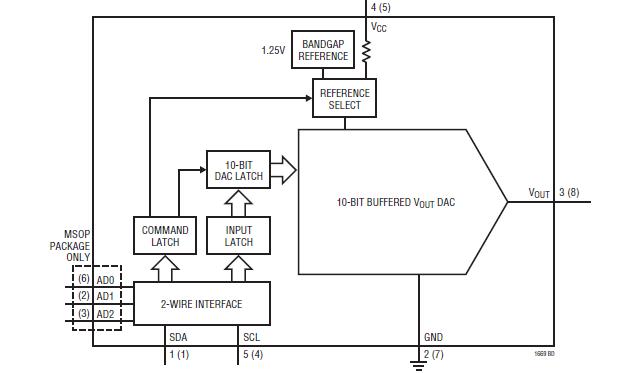

LTC1669IMS8#TRPBF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

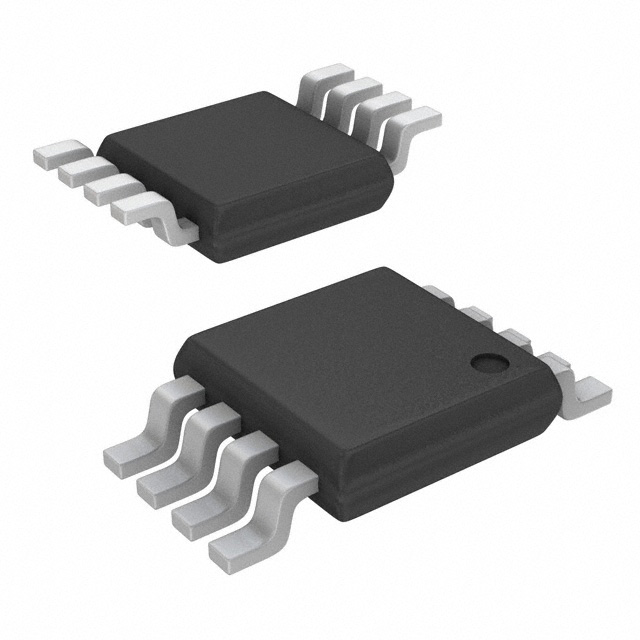

LTC1669IMS8#TRPBF
LTC1669IMS8#TRPBF

IC DAC 10BIT R-R I2C 8-MSOP
Data Sheet
0-2500: $1.49
