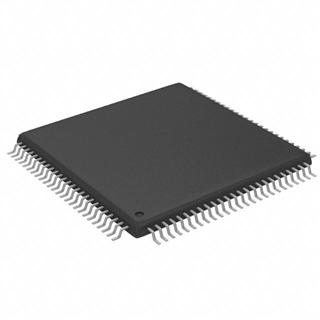

EPM240T100C5N

Product Summary

The EPM240T100C5N instant-on, non-volatile CPLD is based on a 0.18-μm, 6-layermetal-flash process, with densities from 240 to 2,210 logic elements (LEs) (128 to 2,210 equivalent macrocells) and non-volatile storage of 8 Kbits. The EPM240T100C5N offers high I/O counts, fast performance, and reliable fitting versus other CPLD architectures. Featuring MultiVolt core, a user flash memory (UFM) block, and enhanced in-system programmability (ISP). The EPM240T100C5N is designed to reduce cost and power while providing programmable solutions for applications such as bus bridging, I/O expansion, power-on reset (POR) and sequencing control, and device configuration control.

Parametrics

EPM240T100C5N absolute maximum ratings: (1)Internal supply voltage: –0.5 to 4.6 V With respect to ground; (2)I/O supply voltage: –0.5 to 4.6 V; (3)DC input voltage: –0.5 to 4.6 V; (4)DC output current, per pin: –25 to 25 mA; (5)Storage temperature: –65 to 150 ℃ at No bias; (6)Ambient temperature: –65 to 135 ℃ at Under bias; (7)Junction temperature: 135 ℃ at TQFP and BGA packages under bias.

Features

EPM240T100C5N features: (1)Low-cost, low-power CPLD; (2)Instant-on, non-volatile architecture; (3)Standby current as low as 29 μA; (4)Provides fast propagation delay and clock-to-output times; (5)Provides four global clocks with two clocks available per logic array block (LAB); (6)UFM block up to 8 Kbits for non-volatile storage; (7)MultiVolt core enabling external supply voltages to the device of either 3.3 V/2.5 V or 1.8 V; (8)MultiVolt I/O interface supporting 3.3-V, 2.5-V, 1.8-V, and 1.5-V logic levels; (9)Bus-friendly architecture including programmable slew rate, drive strength, bushold, and programmable pull-up resistors; (10)Schmitt triggers enabling noise tolerant inputs (programmable per pin); (11)I/Os are fully compliant with the Peripheral Component Interconnect Special; (12)Interest Group (PCI SIG) PCI Local Bus Specification, Revision 2.2 for 3.3-V; (13)operation at 66 MHz; (14)Supports hot-socketing; (15)Built-in Joint Test Action Group (JTAG) boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-1990; (17)ISP circuitry compliant with IEEE Std. 1532.

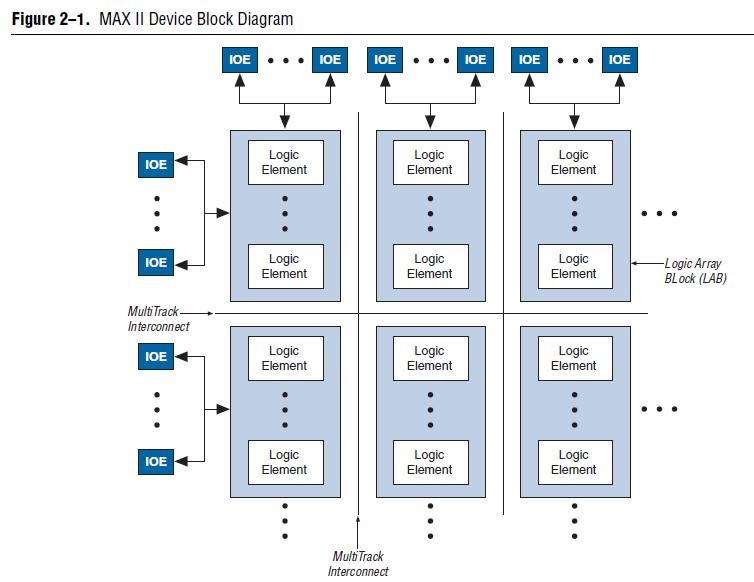

Diagrams
