Product Summary

The LGG2W681MELC50 is an Aluminum electrolytic capacitor.

Parametrics

LGG2W681MELC50 absolute maximum ratings: (1)Category Temperature Range: – 40 ~ +105℃ (160 ~ 250V) , – 25 ~ +105℃ (400 ~ 450V); (2)Rated Voltage Range: 160 ~ 450V; (3)Rated Capacitance Range: 100 ~ 3300μF; (4)Capacitance Tolerance: ± 20% at 120Hz, 20℃.

Features

LGG2W681MELC50 features: (1)One rank smaller case sized than GN series; (2)Suited for equipment down sizing; (3)Adapted to the RoHS directive (2002/95/EC).

Diagrams

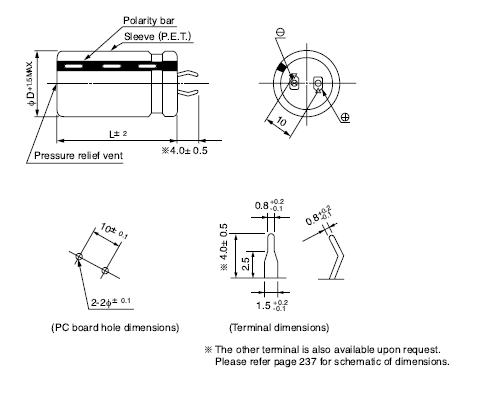

LGG2W681MELC50 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LGG2W681MELC50
LGG2W681MELC50
Nichicon
Aluminum Electrolytic Capacitors - Snap In 450volts 680uF 105c
Data Sheet
0-97: $9.71
97-200: $9.23
200-600: $7.67
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LGG2C102MELA35
LGG2C102MELA35
Nichicon
Aluminum Electrolytic Capacitors - Snap In 160volts 1000uF 105c 25x35x10L/S
Data Sheet
0-56: $6.75
56-250: $4.49
250-500: $4.09
500-1250: $3.71
LGG2C102MELB25
LGG2C102MELB25
Nichicon
Aluminum Electrolytic Capacitors - Snap In 160volts 1000uF 105c 30x25x10L/S
Data Sheet
0-45: $6.97
45-250: $4.64
250-500: $4.22
500-1250: $3.84
LGG2C102MELZ40
LGG2C102MELZ40
Nichicon
Aluminum Electrolytic Capacitors - Snap In 160volts 1000uF 105c 22x40x10L/S
Data Sheet
0-56: $6.19
56-250: $4.12
250-500: $3.74
500-1250: $3.40
LGG2C122MELA40
LGG2C122MELA40
Nichicon
Aluminum Electrolytic Capacitors - Snap In 160volts 1200uF 105c 25x40x10L/S
Data Sheet
0-56: $7.30
56-250: $4.86
250-500: $4.42
500-1250: $4.01
LGG2C122MELB30
LGG2C122MELB30
Nichicon
Aluminum Electrolytic Capacitors - Snap In 160volts 1200uF 105c 30x30x10L/S
Data Sheet
0-45: $7.81
45-250: $5.21
250-500: $4.73
500-1250: $4.30
LGG2C122MELC25
LGG2C122MELC25
Nichicon
Aluminum Electrolytic Capacitors - Snap In 160volts 1200uF 105c 35x25x10L/S
Data Sheet
0-45: $8.42
45-250: $5.62
250-500: $5.11
500-1250: $4.63
