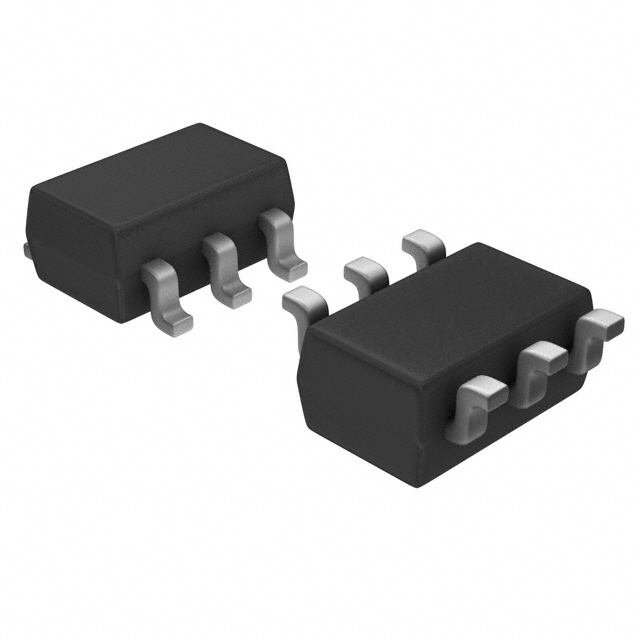

Product Summary

The TPS3808G01DBVR is a microprocessor supervisory circuit monitor system. It voltages from 0.4V to 5.0V, asserting an open drain RESET signal when the SENSE voltage drops below a preset threshold or when the manual reset (MR) pin drops to a logic low. The RESET output of TPS3808G01DBVR remains low for the user adjustable delay time after the SENSE voltage and manual reset (MR) return above their thresholds. The applications of the TPS3808G01DBVR include DSP or Microcontroller Applications, Notebook/Desktop Computers, PDAs/Hand-Held Products, Portable/Battery-Powered Products, FPGA/ASIC Applications.

Parametrics

TPS3808G01DBVR absolute maximum ratings: (1)Input voltage range, VDD: –0.3 to 7.0 V; (2)CT voltage range, VCT: –0.3 to VDD + 0.3 V; (3)Other voltage ranges: VRESET, VMR, VSENSE: –0.3 to 7 V; (4)RESET pin current: 5 mA; (5)Operating junction temperature range, TJ: –40 to +150 ℃; (6)Storage temperature range, TSTG: –65 to +150 ℃; (7)ESD rating, HBM: 2 kV; (8)ESD rating, CDM: 500 V.

Features

TPS3808G01DBVR features: (1)Power-On Reset Generator with Adjustable Delay Time: 1.25ms to 10s; (2)Very Low Quiescent Current: 2.4mA typ; (3)High Threshold Accuracy: 0.5% typ; (4)Fixed Threshold Voltages for Standard Voltage Rails from 0.9V to 5V and Adjustable Voltage Down to 0.4V Are Available; (5)Manual Reset (MR) Input; (6)Open-Drain RESET Output; (7)Temperature Range: –40℃ to +125℃; (8)Small SOT23 and 2mm×2mm QFN Packages.

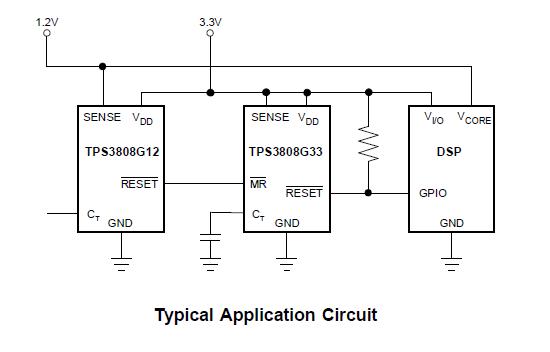

Diagrams

TPS3808G01DBVR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

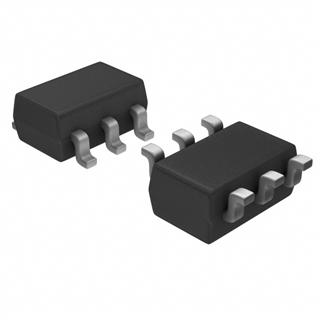

TPS3808G01DBVR
TPS3808G01DBVR
Texas Instruments
Supervisory Circuits Programmable-Delay Supervisory
Data Sheet
0-1: $1.34
1-25: $1.08
25-100: $0.97
100-250: $0.84
TPS3808G01DBVRG4
TPS3808G01DBVRG4
Texas Instruments
Supervisory Circuits Programmable-Delay Supervisory
Data Sheet
0-1: $1.45
1-25: $1.12
25-100: $1.01
100-250: $0.84
