Product Summary
The SP3232EEA-L/TR is a True 3.0V to 5.5V RS-232 Transceiver. It is an RS-232 transceiver solution intended for portable or handheld applications such as notebook or palmtop computers. The SP3232EEA-L/TR has a high-efficiency, charge-pump power supply that requires only 0.1μF capacitors in 3.3V operation. This charge pump allows the SP3232EEA-L/TR to deliver true RS-232 performance from a single power supply ranging from +3.3V to +5.0V. The SP3232EEA-L/TR is a 2-driver/2-receiver device. It is ideal for portable or hand-held applications such as notebook or palmtop computers. The ESD tolerance of the SP3232EEA-L/TR is over ±15kV for both Human Body Model and IEC1000-4-2 Air discharge test methods. The SP3232EEA-L/TR has a low-power shutdown mode where its driver outputs and charge pumps are disabled. During shutdown, the supply current falls to less than 1μA.
Parametrics
SP3232EEA-L/TR absolute maximum ratings: (1)VCC: -0.3V to +6.0V; (2)V+: -0.3V to +7.0V; (3)V-: +0.3V to -7.0V; (4)V+ + |V-|: +13V; (5)ICC (DC VCC or GND current): ±100mA; (6)Input Voltage TxIN, EN: -0.3V to +6.0V; (7)Input Voltage RxIN: ±15V; (8)Output Voltage TxOUT: ±15V; (9)Output Voltage RxOUT: -0.3V to (VCC + 0.3V); (10)Short-Circuit Duration TxOUT: Continuous; (11)Storage Temperature: -65℃ to +150℃.
Features
SP3232EEA-L/TR features: (1)Meets true EIA/TIA-232-F Standards from a +3.0V to +5.5V power supply; (2)Minimum 120Kbps Data Rate Under Full Load; (3)Interoperable with RS-232 down to +2.7V power source; (4)Enhanced ESD Specifications: ±15kV Human Body Model, ±15kV IEC1000-4-2 Air Discharge, ±8kV IEC1000-4-2 Contact Discharge.

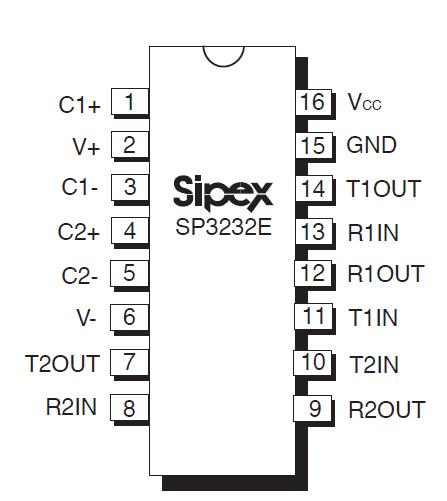

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

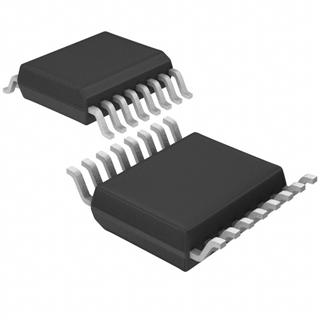

 SP3232EEA-L/TR |
Exar |
RS-232 Interface IC TRUE +3V-+5.5V RS-232 |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
SP320 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
SP3203 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
SP3203E |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
SP3203ECY-L |
Exar |
Universal Bus Functions RS232 W/ 1.8V LOGIC 3-DRVR/2-RCVR |
Data Sheet |
|
|
||||||||||||
|
SP3203ECY-L/TR |
Exar |
Universal Bus Functions RS232 W/ 1.8V LOGIC 3-DRVR/2-RCVR |
Data Sheet |
|
|
||||||||||||
|
SP3203EEY-L |
Exar |
RS-232 Interface IC RS232 250 kbps temp -40C to 85C |
Data Sheet |
|
|
||||||||||||
