SLVU2.8-4.TBT

EPD TVS Diode Array, SLVU2.8-4.TBT, 400 Watts, 24 A, 25 kV, Semtech Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~0.20

PartNumber:: SLVU2.8-4.TBT

Brand:: Semtech Corporation - Semtech | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. JessieGui's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-09

From Other Seller

Part Number:SLVU2.8-4.TBT
US $0.15 - 0.20
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

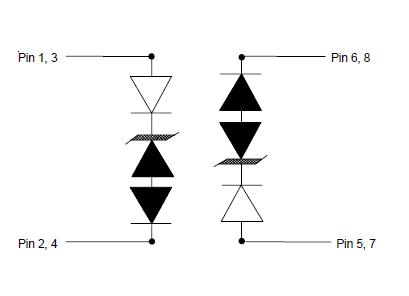

The SLVU2.8-4.TBT is an EPD TVS Diode Array For ESD and Latch-Up Protection. It is designed to protect low voltage, state-of-the-art CMOS semiconductors from transients caused by electrostatic discharge (ESD), cable discharge events (CDE), lightning and other induced voltage surges. The SLVU2.8-4.TBT is constructed using Semtech’s proprietary EPD process technology.

Parametrics

SLVU2.8-4.TBT absolute maximum ratings: (1)Peak Pulse Power (tp = 8/20μs) Ppk: 400 Watts; (2)Peak Pulse Current (tp = 8/20μs) IPP: 24 A; (3)ESD per IEC 61000-4-2 (Air) VESD: 25 kV; (4)ESD per IEC 61000-4-2 (Contact) VESD: 15 kV; (5)Lead Soldering Temperature TL: 260 (10 seconds)℃; (6)Operating Temperature TJ: -55℃ to +125℃; (7)Storage Temperature TSTG: -55℃ to +150℃.

Features

SLVU2.8-4.TBT features: (1)400 Watts peak pulse power (tp = 8/20μs); (2)Protects two line pairs (four lines); (3)Comprehensive pin out for easy board layout; (4)Low capacitance; (5)Low leakage current; (6)Low operating and clamping voltages; (7)Solid-state EPD TVS process technology; (8)JEDEC SO-8 package; (9)Molding compound flammability rating: UL 94V-0; (10)Marking : Part number, date code, logo; (11)Packaging : Tape and Reel.
