Product Summary
The SD103BWS-7-F is a surface mount schottky barrier diode.
Parametrics
SD103BWS-7-F absolute maximum ratings: (1)Peak Repetitive Reverse Voltage VRRM: 30 V; (2)Working Peak Reverse Voltage VRWM: 30 V; (3)DC Blocking Voltage VR: 30 V; (4)RMS Reverse Voltage VR(RMS): 21 V; (5)Forward Continuous Current IFM: 350 mA; (6)Non-Repetitive Peak Forward Surge Current @ t ≤ 1.0s IFSM: 1.5 A; (7)Power Dissipation Pd: 200 mW; (8)Thermal Resistance, Junction to Ambient Air RθJA: 625℃/W; (9)Operating and Storage Temperature Range Tj, TSTG: -65℃ to +125℃.
Features
SD103BWS-7-F features: (1)Low Forward Voltage Drop; (2)Guard Ring Construction for Transient Protection; (3)Negligible Reverse Recovery Time; (4)Low Reverse Capacitance; (5)Ultra-Small Surface Mount Package; (6)Lead Free/RoHS Compliant.

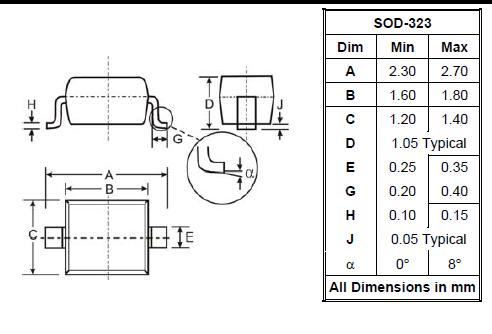

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SD103BWS-7-F |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 30V 200mW |
Data Sheet |
|
|
||||||||||||
