Product Summary

The RB160L-40TE25 is a Schottky barrier diode. The application of the RB160L-40TE25 includes High frequency rectification for switching power supply.

Parametrics

RB160L-40TE25 absolute maximum ratings: (1)Peak reverse voltage, VRM: 40 V; (2)DC reverse voltage, VR: 40 V; (3)Mean rectifying current, IO: 1 A; (4)Peak forward surge current, IFSM: 70 A; (5)Junction temperature, Tj: 125℃; (6)Storage temperature, Tstg: -40~+125℃.

Features

RB160L-40TE25 features: (1)Compact power mold type (PMDS); (2)Low IR. (IR=5mA Typ.); (3)High reliability.

Diagrams

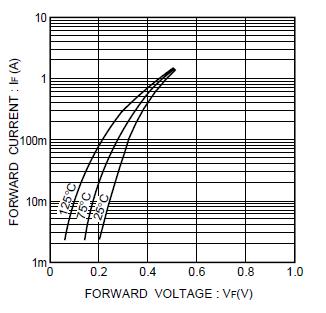

RB160L-40TE25 waveform

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RB160L-40TE25
RB160L-40TE25
ROHM Semiconductor
Schottky (Diodes & Rectifiers) SCHOTTKY 40V 1A
Data Sheet
0-1: $0.25
1-25: $0.18
25-100: $0.13
100-500: $0.07
