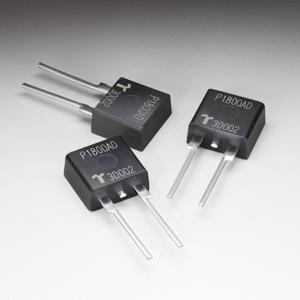

Product Summary

The P1800SCMCLRP is a Protection Thyristor. It is designed to protect broadband equipment such as VOIP, DSL modems and DSLAMs from damaging overvoltage transients.

Parametrics

P1800SCMCLRP absolute maximum ratings: (1)VDRM @ IDRM = 5 μA MIN: 170 V; (2)VS @ 100 V/μS MAX: 220 V; (3)IH MIN: 150 mA; (4)IS MAX: 800 mA; (5)IT MAX: 2.2 A; (6)VT @ IT = 2.2 A MAX: 4 V; (7)Capacitance @ 1 MHz, 2 V bias: 35 to 50 pF.

Features

P1800SCMCLRP features: (1)Low voltage overshoot; (2)Low on-state voltage; (3)Does not degrade with use; (4)Fails short circuit when surged in excess of ratings; (5)40% lower capacitance than our Baseband Protectors, for applications that demand greater signal integrity.

Diagrams

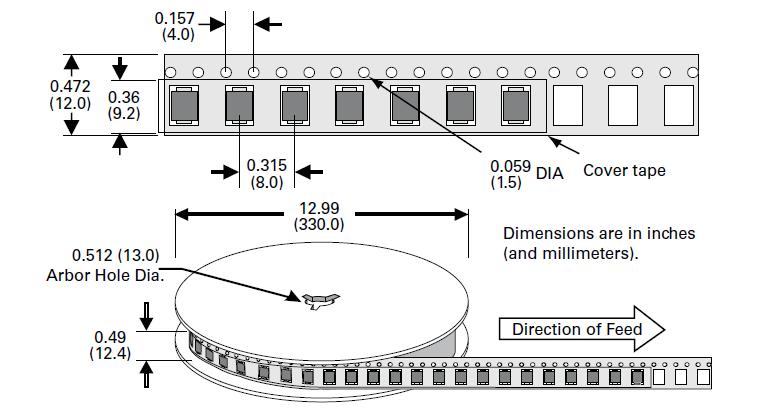

P1800SCMCLRP package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
P1800SCMCLRP
P1800SCMCLRP
Littelfuse
Sidacs 500A 170V
Data Sheet
0-1: $0.86
1-10: $0.72
10-50: $0.68
50-100: $0.65
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
P1800ADL61
P1800ADL61
Littelfuse
Sidacs 1Chp 170V 1000A
Data Sheet
Negotiable
P1800EAL
P1800EAL
Littelfuse
Sidacs 50A 170V
Data Sheet
0-1130: $0.32
1130-2000: $0.31
2000-5000: $0.27
5000-10000: $0.26
P1800EALAP
P1800EALAP
Littelfuse
Sidacs 50A 170V
Data Sheet
0-1130: $0.36
1130-2000: $0.35
2000-5000: $0.29
5000-10000: $0.29
P1800EALRP1
P1800EALRP1
Littelfuse
Sidacs 50A 170V
Data Sheet
0-1130: $0.36
1130-2000: $0.35
2000-5000: $0.29
5000-10000: $0.29
P1800EARP1
P1800EARP1
Littelfuse
Sidacs 50A 170V
Data Sheet
0-1130: $0.36
1130-2000: $0.35
2000-5000: $0.29
5000-10000: $0.29
P1800EB
P1800EB
Littelfuse
Sidacs 100A 170V
Data Sheet
0-1130: $0.36
1130-2000: $0.35
2000-5000: $0.29
5000-10000: $0.29
