Product Summary

The MGA-53543-TR1G is a high dynamic range low noise amplifier MMIC housed in a 4-lead SC-70 (SOT-343) surface mount plastic package. The MGA-53543-TR1G is especially ideal for Cellular/PCS/ W-CDMA basestation applications. With high IP3 and low noise figure, the MGA-53543-TR1G may be utilized as a driver amplifier in the transmit chain and as a second stage LNA in the receive chain.

Parametrics

MGA-53543-TR1G absolute maximum ratings: (1)Vin Maximum Input Voltage: 0.8 V; (2)Vd Supply Voltage: 5.5 V; (3)Pd Power Dissipation: 400 mW; (4)Pin CW RF Input Power: 13 dBm; (5)θjc Thermal Resistance: 130 ℃/W; (6)Tj Junction Temperature: 150℃; (7)TSTG Storage Temperature: -65℃ to 150℃.

Features

MGA-53543-TR1G features: (1)Lead-free Option Available; (2)Very high linearity at low DC bias power; (3)Low noise figure; (4)Advanced enhancement mode PHEMT technology; (5)Excellent uniformity in product specifications; (6)Low cost surface mount small plastic package SOT-343 (4-lead SC-70); (7)Tape-and-Reel packaging option available.

Diagrams

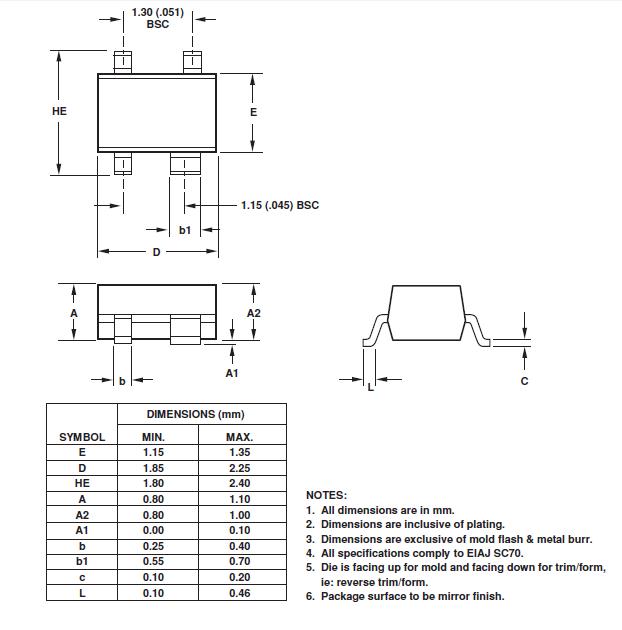

MGA-53543-TR1G package dimensions
