Product Summary

The NC7S08P5X is a single 2-Input high performance CMOS AND Gate.

Parametrics

NC7S08P5X absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +7.0V; (2)DC Input Diode Current (IIK) @ VIN ≤ -0.5V: -20 mA; (3)DC Input Diode Current (IIK) @ VIN ≥ VCC +0.5V: +20 mA; (4)DC Input Voltage (VIN): -0.5V to VCC + 0.5V; (5)DC Output Diode Current (IOK) @ VOUT < -0.5V: -20 mA; (6)DC Output Diode Current (IOK) @ VOUT > VCC +0.5V: +20 mA; (7)DC Output Voltage (VOUT): -0.5V to VCC + 0.5V; (8)DC Output Source or Sink Current (IOUT): ±12.5 mA; (9)DC VCC or Ground Current per Output Pin (ICC or IGND): ±25 mA; (10)Storage Temperature (TSTG): -65℃ to +150℃; (11)Junction Temperature (TJ): 150℃; (12)Lead Temperature (TL) (Soldering, 10 seconds): 260℃; (13)Power Dissipation (PD) @+85℃ SOT23-5: 200 mW; (14)Power Dissipation (PD) @+85℃ SC70-5: 150 mW.

Features

NC7S08P5X features: (1)Space saving SOT23 or SC70 5-lead package; (2)High Speed tPD 3.5 ns typ; (3)Low Quiescent Power ICC < 1 μA; (4)Balanced Output Drive 2 mA IOL, -2 mA IOH; (5)Broad VCC Operating Range 2V–6V; (6)Balanced Propagation Delays; (7)Specified for 3V operation.

Diagrams

NC7S08P5X package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

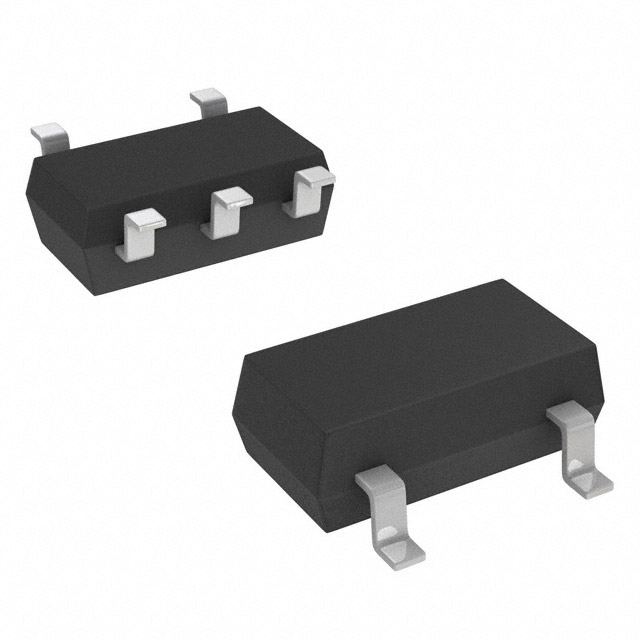

NC7S08P5X
NC7S08P5X
Fairchild Semiconductor
Gates (AND / NAND / OR / NOR) 2-Input AND Gate
Data Sheet
0-1: $0.19
1-25: $0.17
25-100: $0.10
100-250: $0.06
