Product Summary

The DFLS220L-7 is a 2.0A Surface mount schottky barrier rectifier.

Parametrics

DFLS220L-7 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage VRRM: 20 V; (2)Working Peak Reverse Voltage VRWM: 20 V; (3)DC Blocking Voltage VR: 20 V; (4)RMS Reverse Voltage VR(RMS): 14 V; (5)Average Forward Current IF(AV): 2.0 A; (6)Non-Repetitive Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load IFSM: 40 A; (7)Power Dissipation PD: 1.67 W; (8)Power Dissipation PD: 556 mW; (9)Thermal Resistance Junction to Ambient: RθJA 60℃/W; (10)Thermal Resistance Junction to Ambient: RθJA 180℃/W; (11)Thermal Resistance Junction to Soldering: RθJS 10℃/W; (12)Operating Temperature Range Tj: -55℃ to +125℃; (13)Storage Temperature Range TSTG: -55℃ to +150℃.

Features

DFLS220L-7 features: (1)Guard Ring Die Construction for Transient Protection; (2)Low Power Loss, High Efficiency; (3)Patented Interlocking Clip Design for High Surge Current Capacity; (4)High Current Capability and Low Forward Voltage Drop; (5)Lead Free Finish, RoHS Compliant; (6)"Green" Molding Compound.

Diagrams

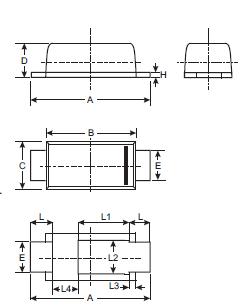

DFLS220L-7 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DFLS220L-7
DFLS220L-7
Diodes Inc.
Schottky (Diodes & Rectifiers) 2.0A 20V LFF
