Product Summary

The MMSD4148T1G is a switching diode with SOD-123 surface mount package, high breakdown voltage and fast speed switching time.

Parametrics

MMSD4148T1G absolute maximum ratings: (1)Continuous Reverse Voltage, VR: 100 V; (2)Peak Forward Current, IF: 200 mA; (3)Peak Forward Surge Current IFSM: 1.0 A at t < 1 sec, 2.0 A at t = 1 usec; (4)Operating and Storage Junction Temperature Range, TJ, Tstg: -55 to +150 ℃.

Features

MMSD4148T1G features: (1)SOD-123 Surface Mount Package; (2)High Breakdown Voltage; (3)Fast Speed Switching Time; (4)Pb-Free Packages are Available.

Diagrams

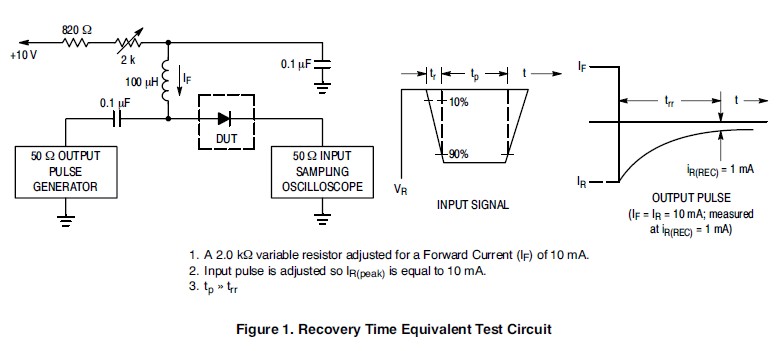

MMSD4148T1G block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MMSD4148T1G
MMSD4148T1G

ON Semiconductor

Diodes (General Purpose, Power, Switching) 100V 200mA

Data Sheet

0-1: $0.14
1-25: $0.09
25-100: $0.07
100-500: $0.04
