Product Summary

The MCP9510HT-E/CH is a Resistor-Programmable Temperature Switch. It can be programmed with a single external resistor, which provides high design flexibility and simplicity. In addition, the MCP9510HT-E/CH provides user programmable features such as 2℃ and 10℃ (typical) switch hysteresis and output structure configuration.

Parametrics

MCP9510HT-E/CH absolute maximum ratings: (1)VDD: 6.0V; (2)Voltage at all Input/Output pins: GND – 0.3V to 6.0V; (3)Input/Output Current: 20 mA; (4)Storage temperature: -65℃ to +150℃; (5)Ambient temp. with power applied: -40℃ to +125℃; (6)Junction Temperature (TJ): +150℃; (7)ESD protection on all pins (HBM:MM): (4 kV/400V); (8)Latch-Up Current at each pin (25℃): ±200 mA.

Features

MCP9510HT-E/CH features: (1)Resistor-Programmable Temperature Switch; (2)Wide Operating Voltage Range: 2.7V to 5.5V; (3)Low Supply Current: 30 μA (typical); (4)Switch for rising temperature: Cold to Hot (H); (5)Switch for falling temperature: Hot to Cold (C); (6)User Selectable Hysteresis: 2℃ or 10℃ (typical); (7)Space-Saving SOT-23-5, SOT-23-6 Packages.

Diagrams

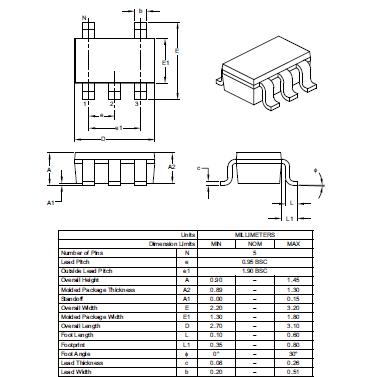

MCP9510HT-E/CH package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MCP9510HT-E/CH
MCP9510HT-E/CH
Microchip Technology
Board Mount Temperature Sensors RESISTOR PROGRAMABLE TEMP Switch
Data Sheet
0-2170: $0.39
2170-3000: $0.39
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MCP9501PT-065E/OT
MCP9501PT-065E/OT
Microchip Technology
Switch ICs - Various Factory Prog Temp SW Act Lo Opn drain out
Data Sheet
0-2200: $0.27
2200-3000: $0.27
MCP9501PT-095E/OT
MCP9501PT-095E/OT
Microchip Technology
Switch ICs - Various Factory Prog Temp SW Act Lo Opn drain out
Data Sheet
0-2200: $0.27
2200-3000: $0.27
MCP9501PT-105E/OT
MCP9501PT-105E/OT
Microchip Technology
Switch ICs - Various Factory Prog Temp SW Act Lo Opn drain out
Data Sheet
0-2200: $0.27
2200-3000: $0.27
MCP9501PT-115E/OT
MCP9501PT-115E/OT
Microchip Technology
Switch ICs - Various Factory Prog Temp SW Act Lo Opn drain out
Data Sheet
0-2200: $0.27
2200-3000: $0.27
MCP9501PT-125E/OT
MCP9501PT-125E/OT
Microchip Technology
Switch ICs - Various Factory Prog Temp SW Act Lo Opn drain out
Data Sheet
0-2200: $0.27
2200-3000: $0.27
MCP9502PT-065E/OT
MCP9502PT-065E/OT
Microchip Technology
Switch ICs - Various Factory Prog Temp SW Act Hi puch-pull out
Data Sheet
0-2200: $0.27
2200-3000: $0.27
