Product Summary

The LMV824MTX/NOPB is a Low Voltage, Low Power, R-to-R Output, 5 MHz Op Amp.

Parametrics

LMV824MTX/NOPB absolute maximum ratings: (1)ESD Tolerance: 2000V; (2)Supply Voltage (V+–V -): 5.5V; (3)Soldering Information Infrared or Convection (20 sec): 235℃; (4)Storage Temperature Range: -65℃ to 150℃; (5)Junction Temperature: 150℃; (6)Operating Ratings Supply Voltage: 2.5V to 5.5V; (7)Temperature Range T J: -40℃ to 85℃.

Features

LMV824MTX/NOPB features: (1)Ultra Tiny, SC70-5 Package 2.0 x 2.0 x 1.0 mm; (2)Guaranteed 2.5 V, 2.7 V and 5 V Performance; (3)Maximum VOS 3.5 mV (Guaranteed); (4)VOS Temp. Drift 1 uV/℃; (5)GBW product @ 2.7 V: 5 MHz; (6)ISupply @ 2.7 V: 220 μA/Amplifier; (7)Minimum SR 1.4 V/us (Guaranteed); (8)CMRR 90 dB; (9)PSRR 85 dB; (10)Rail-to-Rail (R-to-R) Output Swing @600 Ω Load: 160 mV from rail; (11)Rail-to-Rail (R-to-R) Output Swing @10 kΩ Load: 55 mV from rail; (12)VCM @ 5 V: -0.3 V to 4.3 V; (13)Stable with High Capacitive Loads (Refer to Application Section).

Diagrams

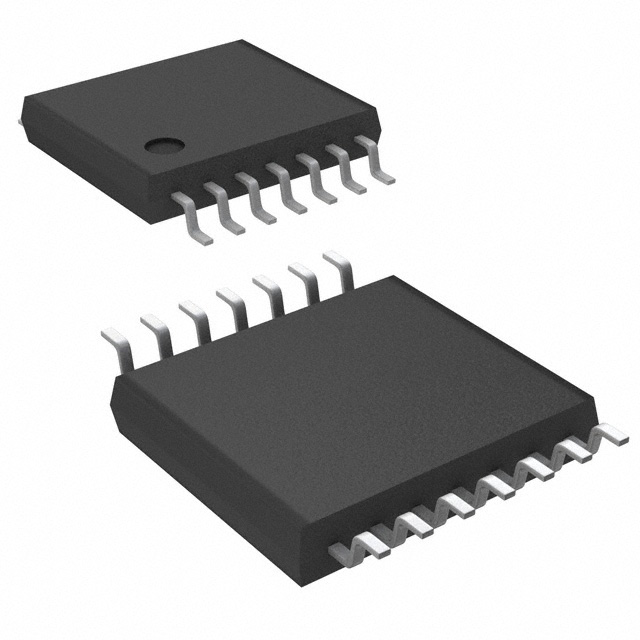

LMV824MTX/NOPB pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LMV824MTX/NOPB
LMV824MTX/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps
Data Sheet
0-1: $0.93
1-25: $0.75
25-100: $0.68
100-250: $0.60
