Product Summary

The LM2904DMR2G is a Single Supply Dual Operational Amplifier. Utilizing the circuit designs perfected for Quad Operational Amplifiers, the LM2904DMR2G features low power drain, a common mode input voltage range extending to ground/VEE, and single supply or split supply operation. The LM2904DMR2G has several distinct advantages over standard operational amplifier types in single supply applications. It can operate at supply voltages as low as 3.0 V or as high as 32 V, with quiescent currents about one−fifth of those associated with the MC1741 (on a per amplifier basis). The common mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. The output voltage range also includes the negative power supply voltage.

Parametrics

LM2904DMR2G absolute maximum ratings: (1)Power Supply Voltages VCC: 32 Vdc; (2)Input Differential Voltage Range VIDR: ±32 Vdc; (3)Input Common Mode Voltage Range VICR: -0.3 to 32 Vdc; (4)Output Short Circuit Duration tSC: Continuous; (5)Junction Temperature TJ: 150℃; (6)Thermal Resistance, Junction to Air RθJA: 238 °C/W; (7)Storage Temperature Range Tstg: -55 to +125℃; (8)ESD Protection at any Pin Human Body Model Vesd: 2000V; (9)ESD Protection at any Pin Machine Model Vesd: 200V; (10)Operating Ambient Temperature Range TA: -40 to +105℃.

Features

LM2904DMR2G features: (1)Short Circuit Protected Outputs; (2)True Differential Input Stage; (3)Single Supply Operation: 3.0 V to 32 V; (4)Low Input Bias Currents; (5)Internally Compensated; (6)Common Mode Range Extends to Negative Supply; (7)Single and Split Supply Operation.

Diagrams

LM2904DMR2G pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

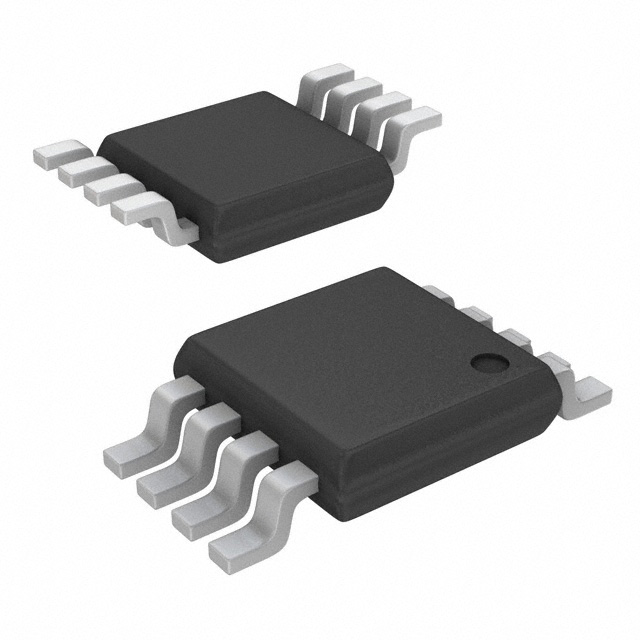

LM2904DMR2G
LM2904DMR2G
ON Semiconductor
Operational Amplifiers - Op Amps 3-26V Dual Lo PWR -40 to 105deg C
Data Sheet
0-1: $0.42
1-25: $0.33
25-100: $0.30
100-500: $0.25
