Product Summary
The CC1000PWR is a true single-chip UHF transceiver designed for very low power and very low voltage wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 315, 433, 868 and 915 MHz, but can easily be programmed for operation at other frequencies in the 300-1000 MHz range.
Parametrics
CC1000PWR absolute maximum ratings: (1)Supply voltage, VDD: -0.3 to 5.0 V; (2)Voltage on any pin: -0.3 to VDD+0.3, max 5.0 V; (3)Input RF level: 10 dBm; (4)Storage temperature range (TSSOP): -50℃ to 150℃; (5)Shelf life (UltraCSP): 1 year; (6)Reflow soldering temperature (TSSOP): 260℃; (7)Peak reflow soldering temperature (UltraCSP): 255℃.
Features
CC1000PWR features: (1)True single chip UHF RF transceiver; (2)Very low current consumption; (3)Frequency range 300 to 1000 MHz Integrated bit synchroniser; (4)High sensitivity (typical -110 dBm at 2.4 kBaud); (5)Programmable output power -20 to 10 dBm; (6)Small size (TSSOP-28 or UltraCSP package); (7)Low supply voltage (2.1 V to 3.6 V); (8)Very few external components required.

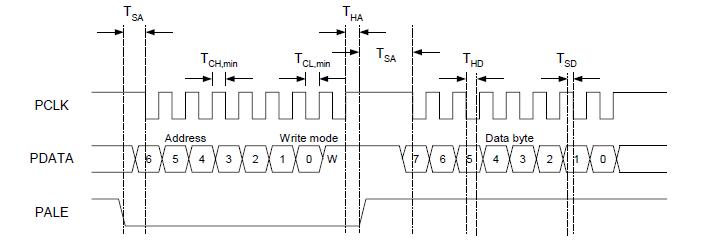

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CC1000PWR |
Texas Instruments |
RF Transceiver CC1000 TAPE AND REEL |
Data Sheet |
|
|
||||||||||||
|
CC1000PWRG3 |
Texas Instruments |
RF Transceiver Sgl Chip Ultra Low Power RF Transceiver |
Data Sheet |
|
|
||||||||||||
