BAV99,215

BAV99,215, 100V, 215MA, SOT23, High-speed switching diode

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~0.01 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~0.01

PartNumber:: BAV99,215

Brand:: NXP Semiconductors - nxp | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. JessieGui's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-09

From Other Seller

Part Number:BAV99,215
US $0.01 - 0.01
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

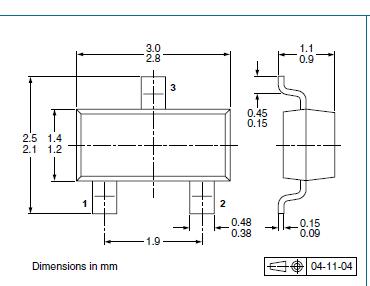

The BAV99,215 is a High-speed switching diode, which is encapsulated in small Surface-Mounted Device (SMD) plastic packages. The BAV99,215 is applicated for High-speed switching, Reverse polarity protection, and General-purpose switching.

Parametrics

BAV99,215 absolute maximum ratings: (1)VRRM repetitive peak reverse voltage: 100 V; (2)VR reverse voltage: 100 V; (3)IF forward current: 215 mA; (4)IFRM repetitive peak forward current: 500 mA; (5)IFSM non-repetitive peak forward current square wave: 4 A @ tp = 1 μs, 1 A @ tp = 1 ms, 0.5 A @ tp = 1 s; (6)Ptot total power dissipation Tamb ≤ 25℃: 250 mW; (7)Tj junction temperature: 150℃; (8)Tamb ambient temperature: -65℃ to +150℃; (9)Tstg storage temperature: -65℃ to +150℃.

Features

BAV99,215 features: (1)High switching speed: trr ≤ 4 ns; (2)Low capacitance: Cd ≤ 1.5 pF; (3)Low leakage current; (4)Reverse voltage: VR ≤ 100 V; (5)Small SMD plastic packages; (6)AEC-Q101 qualified.
