Product Summary
The NLCV32T-1R0M-PF is an inductor.
Parametrics
NLCV32T-1R0M-PF absolute maximum ratings: (1)Inductance: 1 μH; (2)Inductance tolerance: ± 20%; (3)Q typ.: 10; (4)Test frequency L, Q: 7.96 MHz; (5)Self-resonant frequency: 100 MHz min.; (6)DC resistance: 0.06 Ω ± 30%; (7)Rated current: 1000 mA max.
Features
NLCV32T-1R0M-PF features: (1)a renewed version of NLC322522; (2)good heat durability that withstands lead-free compatible reflow soldering conditions; (3)used for the plating on the terminal; (4)the same as the previous NL series; (5)realize excellent connection reliability; (6)Highly heat resistant thermoplastic resin is used to form the exterior package.; (7)From 1.0μH to 330μH, all of the products are available; (8)in compliance with the RoHS Directive.

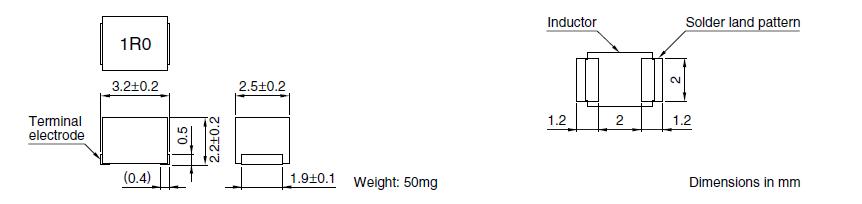

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NLCV32T-1R0M-PF |
TDK |
Power Inductors 1uH 20% |
Data Sheet |
|
|
||||||||||||
|
NLCV32T-1R0M-PFR |
TDK |
Power Inductors 1.0uH 20% |
Data Sheet |
|
|
||||||||||||
