Product Summary
The LTC3401EMS#TRPBF is a high efficiency, fixed frequency, stepup DC/DC converter that operates from an input voltage below 1V. The LTC3401EMS#TRPBF includes a 0.16Ω N-channel MOSFET switch and a 0.18Ω P-channel synchronous rectifier.
Parametrics
LTC3401EMS#TRPBF absolute maximum ratings: (1)VIN, VOUT Voltages: – 0.5V to 6V; (2)SW Voltage: – 0.5V to 6V; (3)VC, Rt Voltages: –0.5V to (VOUT + 0.3V); (4)PGOOD, SHDN, FB, MODE Voltages: – 0.5V to 6V; (5)Operating Temperature Range: –40℃ to 85℃; (6)Storage Temperature Range: –65℃ to 125℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LTC3401EMS#TRPBF features: (1)1A Switch Current Rating; (2)Fixed Frequency Operation Up to 3MHz; (3)Wide Input Range: 0.5V to 5.5V (Operating); (4)Very Low Quiescent Current: 38μA (Burst Mode Operation); (5)2.6V to 5.5V Adjustable Output Voltage; (6)0.85V (Typ) Start-Up Voltage; (7)No External Schottky Diode Required (VOUT < 4.3V); (8)Synchronizable Switching Frequency; (9)Burst Mode Enable Control; (10)Antiringing Control Reduces Switching Noise; (11)PGOOD Output; (12)OPTI-LOOP Compensation; (13)Very Low Shutdown Current: <1μA; (14)Small 10-Pin MSOP Package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

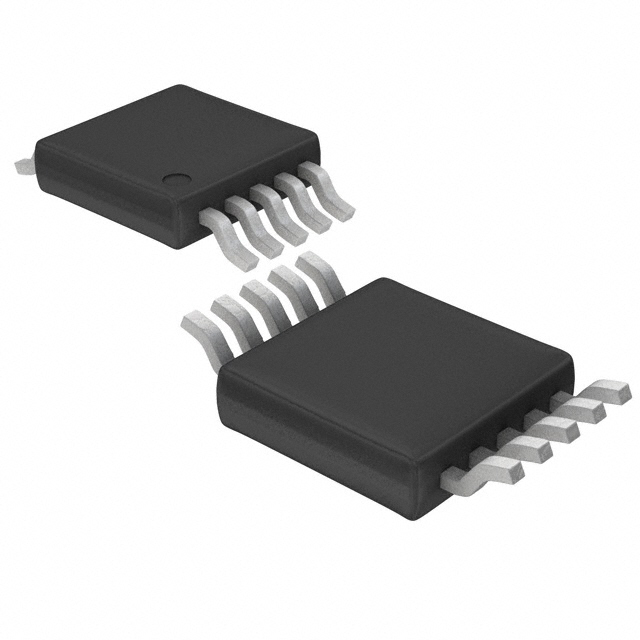

 LTC3401EMS#TRPBF |
|
IC REG BOOST SYNC ADJ 1A 10MSOP |
Data Sheet |
|
|
||||||
