Product Summary

The 02153.15MXEP is a 5x20mm Time-Lag surge withstand ceramic body cartridge fuse designed to IEC specification.

Parametrics

02153.15MXEP absolute maximum ratings: (1)Amp rating: 3.15 A; (2)Voltage rating: 250 V; (3)Interrupting rating: 1500 A @ 250 VAC; (4)Nominal cold resistance: 0.0283Ohms; (5)Nominal melting I2t: 43.255 A2sec; (6)Nominal voltage drop at rated current: 140 mV; (7)Nominal power dissipation at rated current: 4 W.

Features

02153.15MXEP features: (1)Designed to International (IEC) Standards for use globally; (2)Meets the IEC 60127-2 specification for Time-Lag fuses; (3)High breaking capacity; (4)RoHS compliant and lead-free.

Diagrams

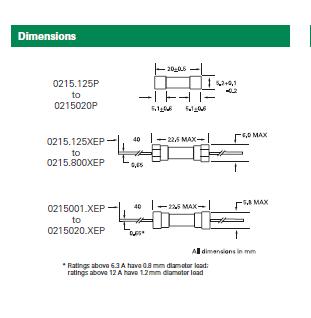

02153.15MXEP package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
02153.15MXEP
02153.15MXEP
Littelfuse
Fuses 250V 3.15A Slo-Blo
Data Sheet
0-1: $0.97
1-10: $0.94
10-100: $0.89
100-250: $0.77
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
0215.125MRET1P
0215.125MRET1P
Littelfuse
Fuses 250V .125A IEC TD HBC 5X20 PT
Data Sheet
0-710: $0.76
710-1000: $0.71
1000-3000: $0.70
3000-6000: $0.67
0215.125MRGT1P
0215.125MRGT1P

FUSE 250V TL 5X20 125MA
Data Sheet
0-1000: $0.84
0215.125MXBP
0215.125MXBP

FUSE 250V IEC HBC 5X20 CC 125MA
Data Sheet
0-1000: $0.63
0215.125MXEP
0215.125MXEP

FUSE 250V 5X20 PT TL 125MA AXIAL
Data Sheet
0-1000: $0.63
0215.125MXP
0215.125MXP
Littelfuse
Fuses 250V .125A 5X20 TL HBC
Data Sheet
0-1: $0.82
1-25: $0.78
25-100: $0.73
100-250: $0.69
0215.160MRET1P
0215.160MRET1P

FUSE 250V 5X20 PT TL 160MA
Data Sheet
0-1000: $0.77
