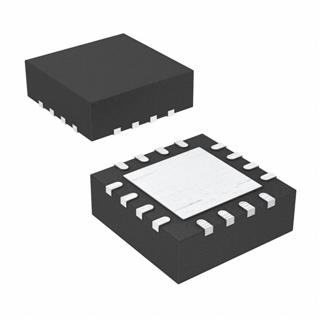

Product Summary

The TPS62110RSAR is a low-noise synchronous step-down dc-dc converter that is ideally suited for systems powered from a 2-cell Li-ion battery or from a 12-V or 15-V rail. The TPS62110RSAR is a synchronous PWM converter with integrated N- and P-channel power MOSFET switches. Synchronous rectification is used to increase efficiency and to reduce external component count. To achieve highest efficiency over a wide load-current range, the TPS62110RSAR enters a power-saving, pulse-frequency modulation (PFM) mode at light load currents. Operating frequency typically 1 MHz, allowing the use of small inductor and capacitor values. The applications of TPS62110RSAR include Point-of-Load Regulation From 12-V Bus, Organizers, PDAs, and Handheld PCs, Handheld Scanners.

Parametrics

TPS62110RSAR absolute maximum ratings: (1)Supply voltage at VIN, VINA: –0.3 V to 20 V; (2)Voltage at SW: –1 V to 20 V; (3)Voltage at EN, SYNC, LBO, PG: –0.3 V to 20 V; (4)Voltage at LBI, FB: –0.3 V to 7 V; (5)Output current at SW: 2400 mA; (6)Maximum junction temperature: 150℃; (7)Operating free-air temperature: –40℃ to 85℃; (8)Storage temperature: –65℃ to 150℃.

Features

TPS62110RSAR features: (1)High-Efficiency Synchronous Step-Down Converter With up to 95% Efficiency; (2)3.1-V to 17-V Operating Input Voltage Range; (3)Adjustable Output Voltage Range From 1.2 V to 16 V; (4)Fixed Output Voltage Options Available in 3.3 V and 5 V; (5)Synchronizable to External Clock Signal up to 1.4 MHz; (6)Up to 1.5-A Output Current; (7)High Efficiency Over a Wide Load-Current Range Due to PFM/PWM Operation Mode; (8)100% Maximum Duty Cycle for Lowest Dropout; (9)20-μA Quiescent Current (Typical); (10)Overtemperature and Overcurrent Protected; (11)Available in 16-Pin QFN Package.

Diagrams

TPS62110RSAR block diagram
