Product Summary

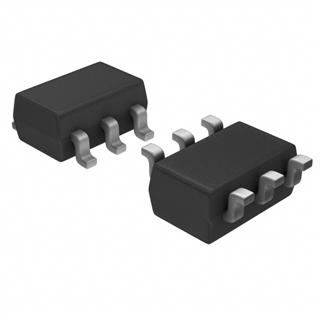

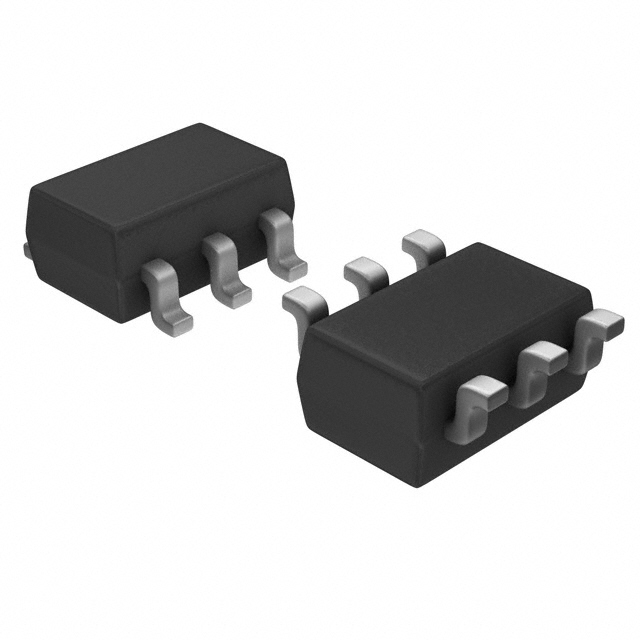

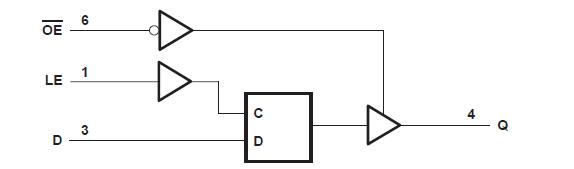

The SN74LVC1G373DBVR is a single D-type latch with 3-state output. It is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G373DBVR is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. While the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs. When LE is taken low, the Q outputs are latched at the logic levels set up at the D inputs.
Parametrics
SN74LVC1G373DBVR absolute maximum ratings: (1)Supply voltage range, VCC: 0.5 V to 6.5 V; (2)Input voltage range, VI: 0.5 V to 6.5 V; (3)Voltage range applied to any output in the high-impedance or power-off state, VO: 0.5 V to 6.5 V; (4)Voltage range applied to any output in the high or low state, VO: 0.5 V to VCC + 0.5 V; (5)Input clamp current, IIK (VI < 0): 50 mA; (6)Output clamp current, IOK (VO < 0): 50 mA; (7)Continuous output current, IO: ±50 mA; (8)Continuous current through VCC or GND: ±100 mA; (9)Package thermal impedance, θJA DBV package: 165℃/W; (10)Package thermal impedance, θJA DCK package: 259℃/W; (11)Package thermal impedance, θJA YEP/YZP package: 123℃/W; (12)Storage temperature range, Tstg: 65℃ to 150℃.
Features
SN74LVC1G373DBVR features: (1)available in the Texas Instruments Nanostar and Nanofree packages; (2)supports 5-V VCC operation; (3)inputs accept voltages to 5.5 V; (4)max tpd of 4 ns at 3.3 V; (5)low power consumption, 10-μA max ICC; (6)± 24-mA output drive at 3.3 V; (7)Ioff supports partial-power-down mode operation; (8)latch-up performance exceeds 100 mA per JESD 78, class II.
