Product Summary
The RC1206FR-07330KL is a thick film resistor.
Parametrics
RC1206FR-07330KL absolute maximum ratings: (1)Operating Temperature Range: –55℃ to +155℃; (2)Maximum Working Voltage: 200 V; (3)Maximum Overload Voltage: 400 V; (4)Dielectric Withstanding Voltage: 500 V; (5)Resistance Range 5% (E24): 1 Ω to 22 MΩ; (6)Resistance Range 1% (E24/E96): 1 Ω to 10 MΩ; (7)Resistance Range Zero Ohm Jumper: < 0.05 Ω; (8)Temperature Coefficient 1 Ω ≤ R ≤ 10 Ω: ±200 ppm/℃; (9)Temperature Coefficient 10 MΩ < R ≤ 22 MΩ: ±200 ppm/℃; (10)Temperature Coefficient 10 Ω < R ≤ 10 MΩ: ±100 ppm/℃; (11)Jumper Criteria Rated Current: 2 A; (12)Jumper Criteria Maximum Current: 10 A.
Features
RC1206FR-07330KL features: (1)Halogen Free Epoxy; (2)RoHS compliant; (3)Products with lead free terminations meet RoHS requirements; (4)Pb-glass contained in electrodes, resistor element and glass are exempted by RoHS; (5)Reducing environmentally hazardous wastes; (6)High component and equipment reliability; (7)Saving of PCB space; (8)None forbidden-materials used in products/production.

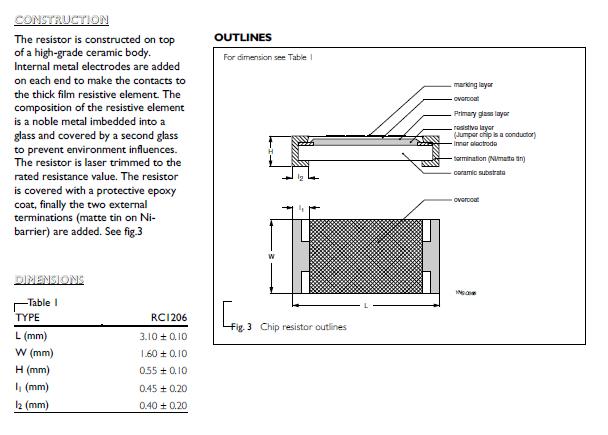

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RC1206FR-07330KL |
Yageo |
Thick Film Resistors - SMD 330K OHM 1% |
Data Sheet |
|
|
||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||
 |
RC12 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||
|
RC1201KB |
Kamaya |
Carbon Composition Resistors 200ohms 10% |
Data Sheet |
Negotiable |
|
||||||||||||||
|
RC1202KB |
Kamaya |
Carbon Composition Resistors 2.0Kohms 10% |
Data Sheet |
Negotiable |
|
||||||||||||||
 |
RC1206FR-07100KL |
|
RES 100K OHM 1/4W 1% 1206 SMD |
Data Sheet |
|
|
||||||||||||||
|
RC1206FR-07100RL |
Yageo |
Thick Film Resistors - SMD 100 OHM 1% |
Data Sheet |
|
|
||||||||||||||
|
RC1206FR-0711KL |
Yageo |
Thick Film Resistors - SMD 11K OHM 1% |
Data Sheet |
|
|
||||||||||||||
