Product Summary

The P0900SCMCLRP is a Protection Thyristor. It is designed to protect broadband equipment such as VOIP, DSL modems and DSLAMs from damaging overvoltage transients. The P0900SCMCLRP provides a surface mount solution that enables equipment to comply with global regulatory standards while limiting the impact to broadband signals.

Parametrics

P0900SCMCLRP absolute maximum ratings: (1)VDRM @ IDRM = 5 μA MIN: 75 V; (2)VS @ 100 V/μS MAX: 98 V; (3)IH MIN: 150 mA; (4)IS MAX: 800 mA; (5)IT MAX: 2.2 A; (6)VT @ IT = 2.2 Amps max: 4 V; (7)Capacitance @1MHz, 2V bias: 45 pF to 70 pF.

Features

P0900SCMCLRP features: (1)Low voltage overshoot; (2)Low on-state voltage; (3)Does not degrade with use; (4)Fails short circuit when surged in excess of ratings; (5)40% lower capacitance than our Baseband Protectors, for applications that demand greater signal integrity.

Diagrams

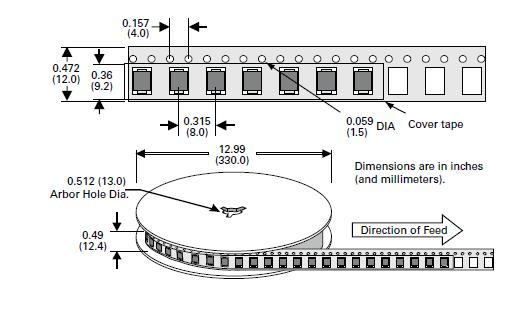

P0900SCMCLRP package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
P0900SCMCLRP
P0900SCMCLRP
Littelfuse
Sidacs 500A 75V
Data Sheet
0-1: $0.68
1-10: $0.61
10-50: $0.57
50-100: $0.54
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
P0900EA
P0900EA
Littelfuse
Sidacs 50A 75V
Data Sheet
0-1160: $0.31
1160-2000: $0.31
2000-5000: $0.29
5000-10000: $0.25
P0900EBLRP1
P0900EBLRP1
Littelfuse
Sidacs 100A 75V
Data Sheet
0-1170: $0.38
1170-2000: $0.37
2000-5000: $0.35
5000-10000: $0.31
P0900ECMCLRP2
P0900ECMCLRP2
Littelfuse
Sidacs 500A 75V
Data Sheet
0-1170: $0.48
1170-2000: $0.47
2000-5000: $0.44
5000-10000: $0.40
P0900ECL
P0900ECL
Littelfuse
Sidacs 500A 75V
Data Sheet
0-1170: $0.40
1170-2000: $0.39
2000-5000: $0.37
5000-10000: $0.33
P0900Q12ALRP
P0900Q12ALRP
Littelfuse
Sidacs 75V 50A QFN 3X3 2L SIDACtor Bi
Data Sheet
0-2960: $0.40
2960-5000: $0.38
5000-10000: $0.34
P0900ECLRP2
P0900ECLRP2
Littelfuse
Sidacs 500A 75V
Data Sheet
0-1160: $0.44
1160-2000: $0.43
2000-5000: $0.41
5000-10000: $0.36
