Product Summary

The MCIMX535DVV1C multimedia applications processor is the latest addition to a growing family of multimedia-focused products offering high performance processing optimized for lowest power consumption. The MCIMX535DVV1C processor features the advanced implementation of the ARM core, which operates at clock speeds as high as 1.2 GHz and interfaces with DDR2/LVDDR2-800, LPDDR2-800, or DDR3-800 DRAM memories. The MCIMX535DVV1C is suitable for applications such as the following: Tablets, High-end mobile internet devices (MID), Smartbooks, Thin clients, Internet Monitors, Media Phones, High-end, portable media players PMP) with HD video capability, Gaming consoles.

Parametrics

MCIMX535DVV1C absolute maximum ratings: (1)Peripheral Core Supply Voltage VCC: –0.3 to 1.35 V; (2)ARM Core Supply Voltage VDDGP: –0.3 to 1.35 V; (3)Supply Voltage UHVIO Supplies denoted as I/O Supply: –0.5 to 3.6 V; (4)Supply Voltage for non UHVIO Supplies denoted as I/O Supply: –0.5 to 3.3 V; (5)USB VBUS VBUS: 5.25 V; (6)Input/Output Voltage Range Vin/Vout: –0.5 to OVDD +0.32; (7)Storage Temperature Range TSTORAGE: –40 to 150 ℃.

Features

MCIMX535DVV1C features: (1)MMU, L1 instruction and L1 data cache; (2)Unified L2 cache; (3)Target frequency of the core (including Neon, VFPv3 and L1 cache): 1 GHz; (4)Neon coprocessor (SIMD media processing architecture) and vector floating point (VFP-Lite) coprocessor supporting VFPv3; (5)TrustZone.

Diagrams

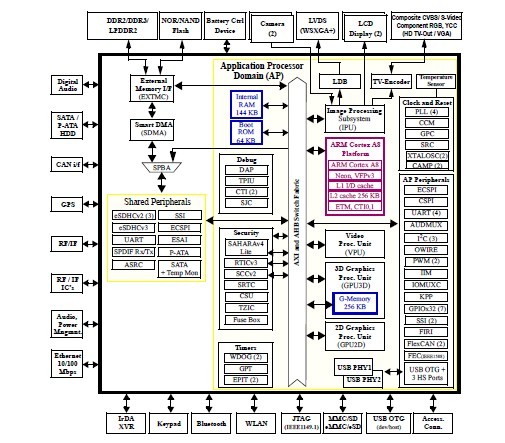

MCIMX535DVV1C block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MCIMX535DVV1C
MCIMX535DVV1C
Freescale Semiconductor
Processors - Application Specialized IMX53 REV 2.1 COMM
Data Sheet
0-1: $19.38
1-25: $16.75
25-50: $14.17
50-100: $11.60
MCIMX535DVV1CR2
MCIMX535DVV1CR2
Freescale Semiconductor
Processors - Application Specialized iMX53 Rev 2.1 Comm
Data Sheet
0-406: $14.89
406-500: $11.60
