Product Summary
The LM201ADT is a general purpose operational amplifier which offers many features: supply voltages from ±5V to ±22V, low current drain, overload protection on the input and output, no latch-up when the common-mode range is exceeded, free from oscillations and compensation with a single 30pF capacitor. The LM201ADT has advantages over internally compensated amplifiers in that the compensation can be tailored to the particular application: slew rate of 10V/μs and bandwidth of 3.5MHz can be easily achieved.
Parametrics
LM201ADT absolute maximum ratings: (1)VCC Supply voltage: ±22 V; (2)Vi Input Voltage: ±15 V; (3)Vid Differential Input Voltage: ±30 V; (4)Ptot Power Dissipation N Suffix: 500 mW; (5)Ptot Power Dissipation D Suffix: 300 mW; (6)Output Short-circuit Duration: Infinite; (7)Toper Opearting Free-air Temperature Range: -55℃ to +125℃, or -40℃ to +105℃, or 0℃ to +70℃; (8)Tstg Storage Temperature Range: -65℃ to +150℃.
Features
LM201ADT features: (1)Input offset voltage: 0.7mV to 2mV; (2)Input bias current: 25nA to 70nA; (3)Input offset current: 1.5nA to 2nA; (4)Slew rate as inversing: 10V/μs amplifier.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

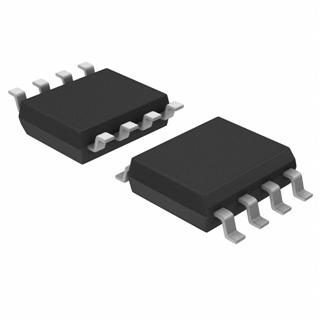

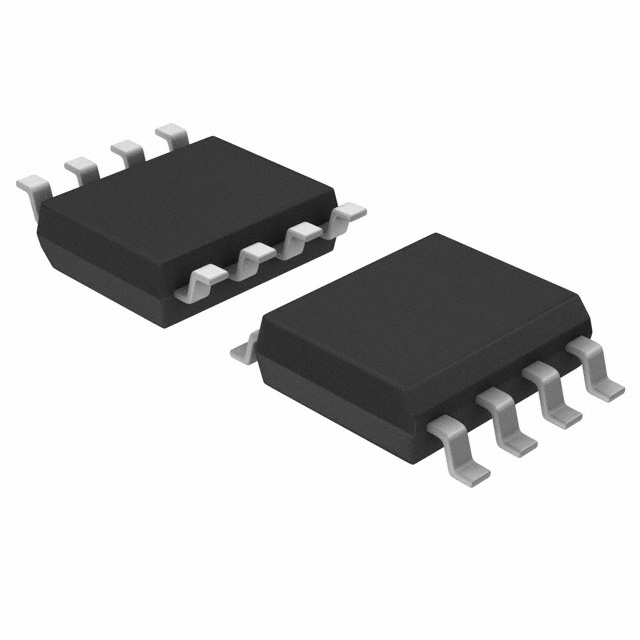

 LM201ADT |
STMicroelectronics |
Operational Amplifiers - Op Amps Gain Band-w 3.5MHz Dissipation 300mW |
Data Sheet |
|
|
||||||||||||
