Product Summary

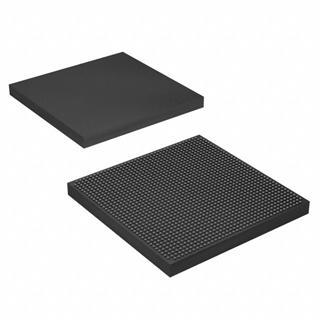

The EP4SGX230KF40I3N is an FPGA.
Parametrics
EP4SGX230KF40I3N absolute maximum ratings: (1)Operating Temperature: -40℃ ~ 100℃; (2)Voltage - Supply: 0.87 V ~ 0.93 V.
Features
EP4SGX230KF40I3N features: (1)Up to 48 full-duplex CDR-based transceivers in Stratix IV GX and GT devices supporting data rates up to 8.5 Gbps and 11.3 Gbps, respectively; (2)Dedicated circuitry to support physical layer functionality for popular serial protocols; (3)Complete PCIe protocol solution with embedded PCIe hard IP blocks; (4)Programmable transmitter pre-emphasis and receiver equalization circuitry to compensate for frequency-dependent losses in the physical medium; (5)Typical physical medium attachment (PMA) power consumption of 100 mW at 3.125 Gbps and 135 mW at 6.375 Gbps per channel; (6)72,600 to 813,050 equivalent LEs per device.

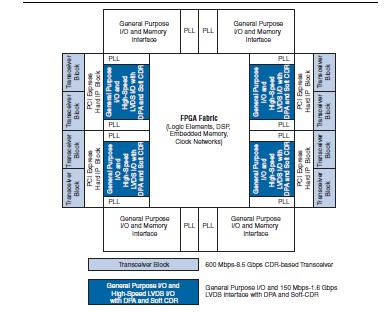

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP4SGX230KF40I3N |
|
IC STRATIX IV FPGA 230K 1517FBGA |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
EP4SGX110DF29C3 |
|
IC STRATIX IV FPGA 110K 780FBGA |
Data Sheet |
|
|
||||||
|
EP4SE530H35C4N |
|
IC STRATIX IV FPGA 530K 1152HBGA |
Data Sheet |
|
|
||||||
|
EP4SE530H35I3 |
|
IC STRATIX IV FPGA 530K 1152HBGA |
Data Sheet |
|
|
||||||
|
EP4SE820H35C4 |
|
IC STRATIX IV FPGA 820K 1152HBGA |
Data Sheet |
|
|
||||||
|
EP4SE820H35C4N |
|
IC STRATIX IV FPGA 820K 1152HBGA |
Data Sheet |
|
|
||||||
|
EP4SE820H35I3 |
|
IC STRATIX IV FPGA 820K 1152HBGA |
Data Sheet |
|
|
||||||
