Product Summary

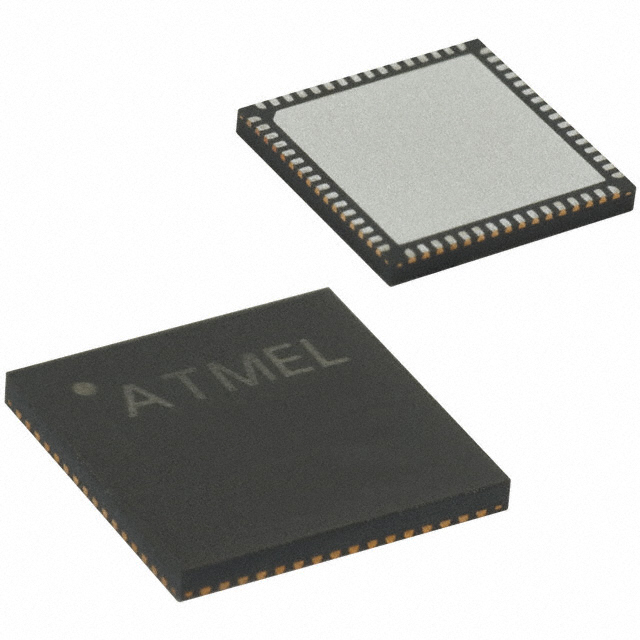

The ATMEGA165PV-8MU is an 8-bit Microcontroller with 16K Bytes In-System Programmable Flash.
Parametrics
ATMEGA165PV-8MU absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on any Pin except RESET with respect to Ground: -0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltag: 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 400.0 mA.
Features
ATMEGA165PV-8MU features: (1)High Performance, Low Power Atmel AVR 8-Bit Microcontroller; (2)Advanced RISC Architecture; (3)High Endurance Non-volatile Memory segments; (4)JTAG (IEEE std. 1149.1 compliant) Interface; (5)Speed Grade: 0 - 4 MHz @ 1.8V - 5.5V, 0 - 8 MHz @ 2.7V - 5.5V; (6)Temperature range: -40℃ to 85℃ Industrial; (7)Ultra-Low Power Consumption; (8)Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode; (9)One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode; (10)Real Time Counter with Separate Oscillator; (11)Four PWM Channels; (12)8-channel, 10-bit ADC; (13)Programmable Serial USART; (14)Master/Slave SPI Serial Interface; (15)Universal Serial Interface with Start Condition Detector; (16)Programmable Watchdog Timer with Separate On-chip Oscillator; (17)On-chip Analog Comparator; (18)Interrupt and Wake-up on Pin Change.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATMEGA165PV-8MU |
Atmel |
8-bit Microcontrollers (MCU) AVR 16K FLASH 512B EE 1K SRAM ADC 5V |
Data Sheet |
|
|
||||||||||||
 |
ATMEGA165PV-8MUR |
Atmel |
8-bit Microcontrollers (MCU) AVR,16K FLASH,ADC IND TEMP 1.8V |
Data Sheet |
|
|
||||||||||||
