Product Summary

The TS922IYPT is a rail-to-rail dual BiCMOS operational amplifier optimized and fully specified for 3V and 5V operation. The TS922IYPT’s high output current allows low-load impedances to be driven. Very low noise, low distortion, low offset and a high output current capability make the TS922IYPT an excellent choice for high quality, low voltage or battery operated audio systems. The TS922IYPT is stable for capacitive loads up to 500pF.

Parametrics

TS922IYPT absolute maximum ratings: (1)VCC Supply voltage: 14V; (2)Vid Differential input voltage: ±1 V; (3)Vin Input voltage: VDD-0.3 to VCC+0.3 V; (4)Tstg Storage temperature: -65℃ to +150℃; (5)Rthja Thermal resistance junction to ambient: SO8 125℃/W, TSSOP8 120℃/W, DIP8 85℃/W, Flip-chip 90℃/W; (6)Rthjc Thermal resistance junction to case: SO8 40℃/W, TSSOP8 37℃/W, DIP8 41℃/W; (7)Tj Maximum junction temperature: 150℃; (8)ESD HBM human body model: 2 kV; (9)ESD MM machine model: 100 V; (10)ESD CDM charged device model: 1.5 kV; (11)Latch-up immunity: 200 mA; (12)Soldering temperature (10sec), leaded version: 250℃; (13)Soldering temperature (10sec), unleaded version: 260℃.

Features

TS922IYPT features: (1)Rail-to-rail input and output; (2)Low noise: 9nV; (3)Low distortion; (4)High output current: 80mA (able to drive 32Ω loads); (5)High-speed: 4MHz, 1V/μs; (6)Operating from 2.7V to 12V; (7)ESD Internal protection: 2kV; (8)Latch-up immunity; (9)Macromodel included in this specification; (10)Dual version available in flip-chip package.

Diagrams

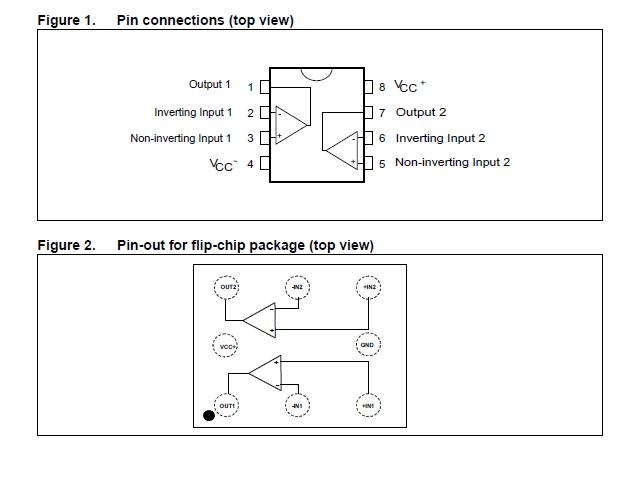

TS922IYPT pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TS922IYPT
TS922IYPT

IC OP AMP R-R DUAL BICMOS 8TSSOP
Data Sheet
0-1: $0.84
1-10: $0.74
10-25: $0.67
25-100: $0.59
100-250: $0.52
250-500: $0.46
500-1000: $0.36
