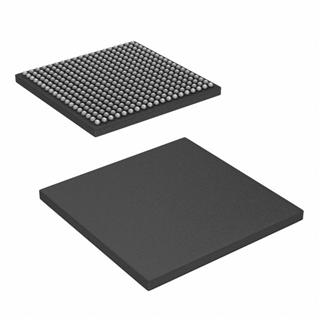

Product Summary
The TMS320DM6437ZWT6 is a Digital Media Processor.
Parametrics
TMS320DM6437ZWT6 absolute maximum ratings: (1)Supply voltage range Core (CVDD, VDDA_1P1V: –0.5 V to 1.5 V; (2)Supply voltage range I/O, 3.3V (DVDD33): –0.5 V to 4.2 V; (3)Supply voltage range I/O, 1.8V (DVDDR2, DDR_VDDDLL, PLLPWR18, VDDA_1P8V, MXVDD): –0.5 to 2.5 V; (4)Input voltage range VI I/O, 3.3-V pins (except PCI-capable pins): –0.5 V to 4.2 V; (5)Input voltage range VI I/O, 3.3-V pins PCI-capable pins: –0.5 V to DVDD33 + 0.5 V; (6)Input voltage range VI I/O, 1.8 V: –0.5 V to 2.5 V; (7)Output voltage range VO I/O, 3.3-V pins (except PCI-capable pins): –0.5 V to 4.2 V; (8)Input voltage range VO I/O, 3.3-V pins PCI-capable pins: –0.5 V to DVDD33 + 0.5 V; (9)Input voltage range VO I/O, 1.8 V: –0.5 V to 2.5 V; (10)Operating Junction temperature ranges, TJ Commercial: 0℃ to 90℃; (11)Operating Junction temperature ranges, TJ Automotive (Q or S suffix): –40℃ to 125℃; (12)Storage temperature range, Tstg (default): –65℃ to 150℃; (13)High-level output current [DC] DDR2: –13.4 mA; (14)CI Input capacitance: 5 pF; (15)Co Output capacitance: 5 pF.
Features
TMS320DM6437ZWT6 features: (1)High-Performance Digital Media Processor; (2)VelociTI.2 Extensions to VelociTI Advanced Very-Long-Instruction-Word (VLIW) TMS320C64x+ DSP Core; (3)Eight Highly Independent Functional Units With VelociTI.2 Extensions; (4)Load-Store Architecture With Non-Aligned Support; (5)64 32-Bit General-Purpose Registers; (6)Instruction Packing Reduces Code Size; (7)All Instructions Conditional; (8)Byte-Addressable (8-/16-/32-/64-Bit Data); (9)8-Bit Overflow Protection; (10)Bit-Field Extract, Set, Clear; (11)Normalization, Saturation, Bit-Counting; (12)VelociTI.2 Increased Orthogonality; (13)Supports Little Endian Mode Only; (14)Video Processing Subsystem (VPSS).

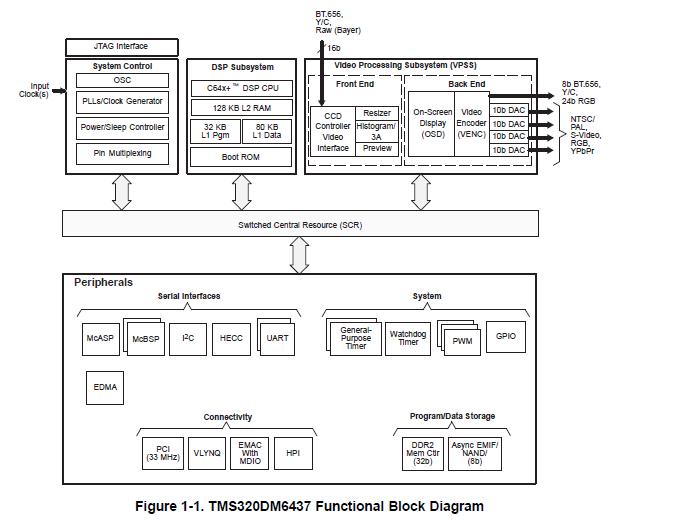

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TMS320DM6437ZWT6 |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) Dig Media Proc |
Data Sheet |
|
|
|||||||||||||
