Product Summary
The TC54VN1402ECB713 is a CMOS voltage detector that is especially well suited for battery-powered applications because of its extremely low 1 μA operating current and small surface mount packaging. The TC54VN1402ECB713 is available with either an open-drain or complementary output stage.
Parametrics
TC54VN1402ECB713 absolute maximum ratings: (1)Input Voltage: +12V; (2)Output Current: 50 mA; (3)Output Voltage: CMOS: (VSS – 0.3V) to (VIN + 0.3V); (4)Open-Drain: (VSS – 0.3V) to 12V; (5)Operating Temperature Range: -40℃ to +85℃; (6)Storage Temperature Range: -65℃ to +150℃.
Features
TC54VN1402ECB713 features: (1)± 2.0% Detection Thresholds; (2)Small Packages: 3-Pin SOT-23A, 3-Pin SOT-89, and TO-92; (3)Low Current Drain: 1 μA (Typical); (4)Wide Detection Range: 1.1V to 6.0V; (5)Wide Operating Voltage Range: 0.7V to 10V.

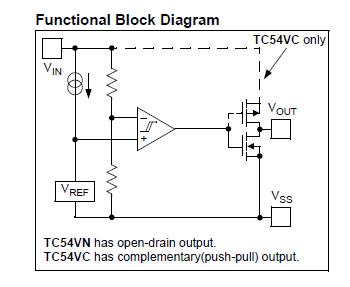

Diagrams

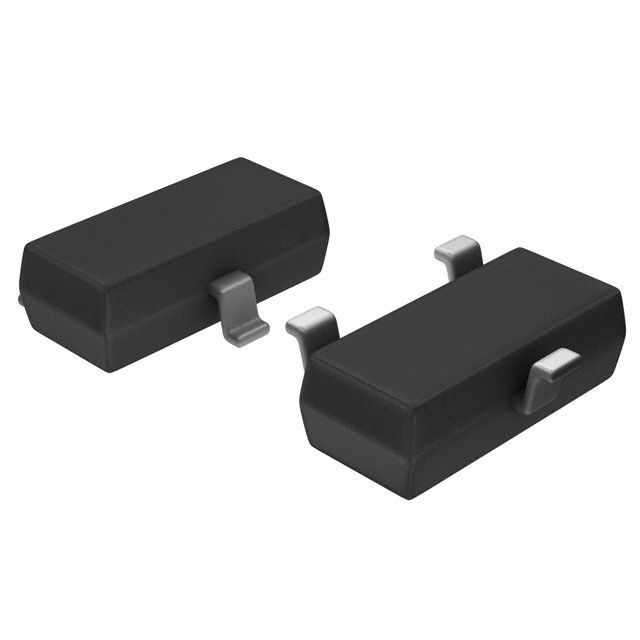

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TC54VN1402ECB713 |
Microchip Technology |
Supervisory Circuits 1.4V 2% SOT-23A-3 |
Data Sheet |
|
|
||||||||||||
