Product Summary

The SN65LVDS9637D is a differential line receiver that implement the electrical characteristics of low-voltage differential signaling (LVDS).

Parametrics

SN65LVDS9637D absolute maximum ratings: (1)VCC Supply voltage range: –0.5 V to 4 V; (2)VI Input voltage range Enables and output: –0.5 V to VCC + 0.5 V; (3)VI Input voltage range A or B: –0.5 V to 4 V; (4)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (5)Tstg Storage temperature range: –65℃ to 150℃

Features

SN65LVDS9637D features: (1)Meet or Exceed the Requirements of ANSI TIA/EIA-644 Standard; (2)Operate With a Single 3.3-V Supply; (3)Designed for Signaling Rates of up to 100 Mbps; (4)Differential Input Thresholds ±100 mV Max; (5)Typical Propagation Delay Time of 2.1 ns; (6)Power Dissipation 60 mW Typical Per Receiver at Maximum Data Rate; (7)Bus-Terminal ESD Protection Exceeds 8 kV; (8)Low-Voltage TTL (LVTTL) Logic Output Levels; (9)Pin Compatible With AM26LS32, MC3486, and μA9637; (10)Open-Circuit Fail-Safe; (11)Cold Sparing for Space and High Reliability Applications Requiring Redundancy.

Diagrams

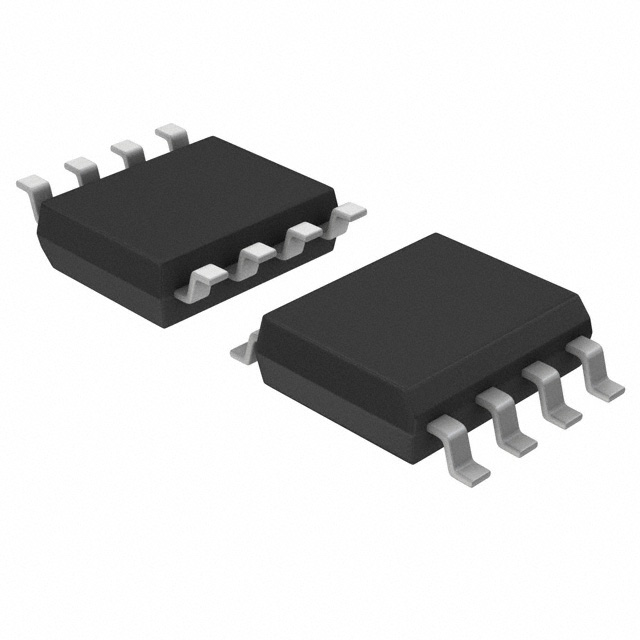

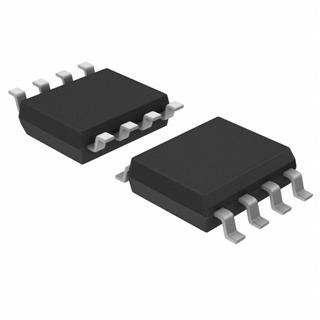

SN65LVDS9637D pin configuration
